FlintTrade User Guide

This guide walks you from a fresh install to local setup, sandbox workflows, and Live-mode safeguard verification. The default reading order is top-to-bottom — every section builds on the one before it. If you already have FlintTrade running, jump to the Workspace tour or use the section list in the sidebar.

Beta software. FlintTrade v0.0.1 is not production ready and does not provide financial advice. Read disclaimer.md before connecting a broker or switching to Live mode.

Multiple workflows, one local app. FlintTrade has route groups for order workflow testing, portfolio-style records, and guided learning. Pick /trade, /invest, or /learn from the sidebar to switch workspaces without losing context.

1. InstallationCopy Anchor Link

FlintTrade runs on Windows, macOS, and Linux (including Raspberry Pi). It is a self-hosted web app first: one backend process serves the full terminal UI and API on a single origin (port 5100), usable from any browser. The desktop apps are convenience wrappers around that same backend for people who prefer a one-click install.

One-line install (recommended — no prerequisites)Copy Anchor Link

The web-app installer runs in the shell your OS already ships (bash or zsh on macOS and Linux, built-in PowerShell on Windows) and needs no other toolchain: no Python, no Node, no git and no make.

# macOS / Linux
curl -fsSL https://flinttrade.vercel.app/web-install.sh | bash

# Windows 10/11
# Run in a normal (non-Administrator) PowerShell window
irm https://flinttrade.vercel.app/web-install.ps1 | iex

It provisions a pinned, checksum-verified toolchain (uv, Python 3.12, Node and pnpm) under ~/.flinttrade/tools, builds FlintTrade from a managed source checkout at ~/.flinttrade/web-src/FlintTrade, and installs a flinttrade-web launcher — ~/.local/bin/flinttrade-web on macOS and Linux, %LOCALAPPDATA%\Programs\FlintTradeWeb\flinttrade-web.cmd plus a FlintTrade Web Start Menu shortcut on Windows. The Electron desktop shell keeps its own launcher, Start Menu entry and source checkout, so the two installs never collide and can be run in either order. Open http://127.0.0.1:5100 and follow the first-time Setup flow — no .env file is required.

Removing it again is covered in Uninstall.

If the site is unreachable (repo-direct fallback)Copy Anchor Link

Use this whenever the command above fails. The hosted URLs are only a redirect to the scripts in this repository, so a site outage or a deployment without an immutable source commit answers 503 — and piping that error page into a shell does nothing useful. These commands fetch the same script straight from GitHub and depend on no deployment:

# macOS / Linux
curl -fsSL https://raw.githubusercontent.com/navaneeshnagarajan/FlintTrade/main/scripts/install/flinttrade-web-install.sh | bash

# Windows 10/11
# Run in a normal (non-Administrator) PowerShell window
irm https://raw.githubusercontent.com/navaneeshnagarajan/FlintTrade/main/scripts/install/flinttrade-web-install.ps1 | iex

To read the script before running it, clone the repository and run it from the checkout instead:

git clone https://github.com/navaneeshnagarajan/FlintTrade.git
cd FlintTrade
bash scripts/install/flinttrade-web-install.sh

On Windows, run the checkout copy with powershell -ExecutionPolicy Bypass -File scripts\install\flinttrade-web-install.ps1.

Run from source (contributors)Copy Anchor Link

Use this when you are developing FlintTrade itself. It expects you to supply the toolchain yourself: git, Python 3.12+, Node 22.22.2+, uv and pnpm.

git clone https://github.com/navaneeshnagarajan/FlintTrade.git
cd FlintTrade
uv sync
pnpm install
pnpm --filter @flinttrade/terminal build
python scripts/ft.py start

The same six lines run unchanged in Windows PowerShell — do not join them with &&, which Windows PowerShell 5.1 does not support. python scripts/ft.py <target> is the cross-platform runner (no make and no bash needed); make <target> is the POSIX alias.

The terminal build step is not optional: the backend serves the UI only when packages/apps/terminal/dist/index.html exists, so skipping it leaves you with an API and no interface.

Docker (make docker-up) is an advanced, POSIX-only path — it needs make and Docker, so it is not a zero-prerequisite way in. A .env file is optional: the default profile starts the backend, the terminal build and nginx, and the UI is served at http://localhost:8080 (override with FLINTTRADE_HTTP_PORT).

Native desktop (Electron convenience shell)Copy Anchor Link

The desktop package is a small Electron shell. It verifies pinned tools and builds an inspectable local source checkout on first launch instead of downloading a frozen backend payload. Its release contract is one universal macOS DMG, one Windows x64 NSIS installer, Linux x64 and ARM64 AppImages, and SHA256SUMS.txt.

The public download surface distinguishes the source-built web-app install above from Electron-shell installers. It withholds Electron commands and downloads unless one release contains all four canonical installers plus SHA256SUMS.txt. For a release that passes that gate, the supported commands are:

# macOS / Linux
curl -fsSL https://flinttrade.vercel.app/install.sh | bash

# Windows 10/11
irm https://flinttrade.vercel.app/install.ps1 | iex

If the site is unreachable, the same desktop installer runs repo-direct — swap flinttrade-web-install for flinttrade-install in the fallback commands under If the site is unreachable.

The installed shell builds the hash-verified, integrity-locked source on first launch (progress on the splash; needs internet), creates the OS workspace, and opens Setup only after the source guardian is healthy. Source/runtime updates are staged and health-proved separately from Electron-shell installer updates. Manual downloads and per-OS caveats are covered in DESKTOP.md.

The matching desktop uninstall is in Uninstall.

Contributors can package the shell locally (these lines run unchanged in bash, zsh and Windows PowerShell):

pnpm install --frozen-lockfile
python scripts/ft.py desktop-test
python scripts/ft.py desktop-package

On POSIX, make desktop-test and make desktop-package are aliases for the same targets. Install the generated package from packages/apps/desktop/release/electron/, launch FlintTrade, and follow the first-time Setup flow. Local macOS output is always ad-hoc sealed and has no Developer ID trust. Only release CI can use complete Apple distribution-signing and notarisation secrets.

Terminal dev server (contributors)Copy Anchor Link

When you are changing terminal code, run the Vite dev server alongside the backend instead of the built UI. It requires Python 3.12+, Node.js 22.22.2+, Git, and optionally Rust for core/ticks.

python scripts/ft.py setup
python scripts/ft.py dev

Open http://localhost:5173 once the dev server is ready. On POSIX, make setup and make dev are aliases for the same targets.

Platform-specific setupCopy Anchor Link

For step-by-step instructions tailored to each operating system, see:

• Windows setup
• macOS setup
• Linux setup
• Raspberry Pi setup
• Quick start (cross-platform)

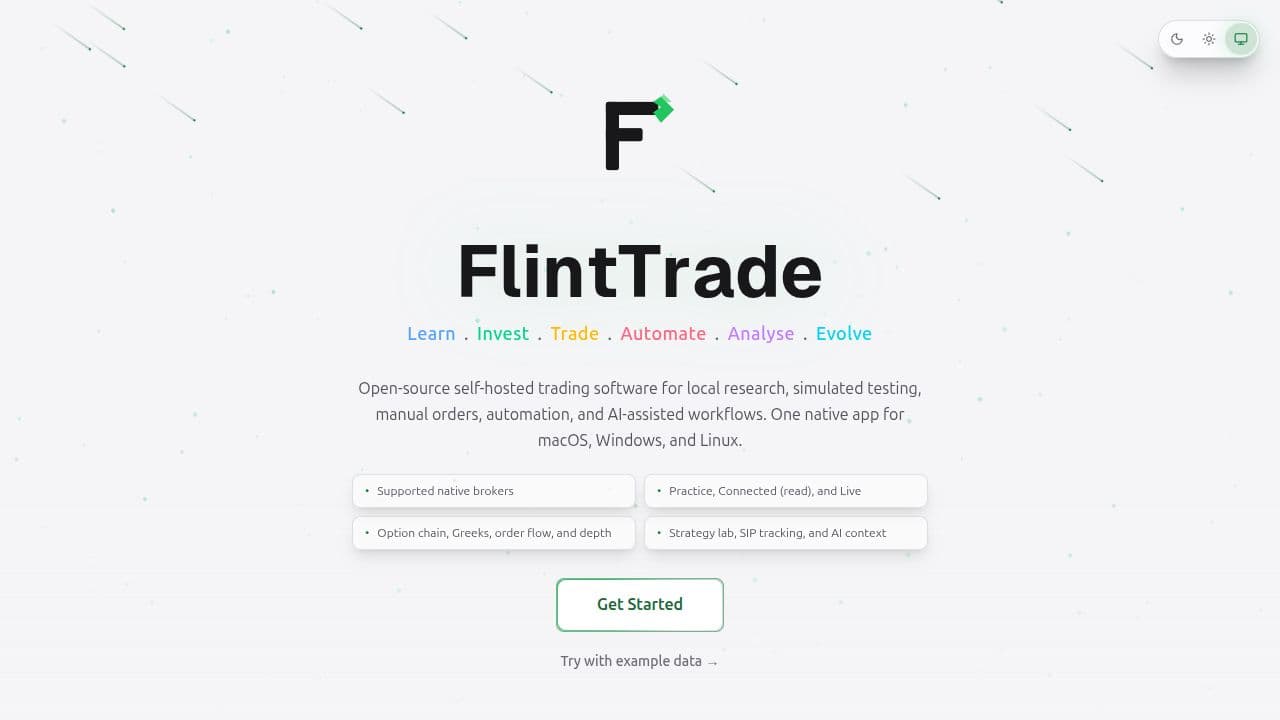

The /welcome route — first-time cinematic introduction. Get Started opens Setup. Try with example data opens sample data, labelled Example.

2. First broker connectionCopy Anchor Link

Native broker access is not usable on this unreleased line: native broker UX stays down on main. Do not treat catalogue metadata as a working operator path.

Broker connections use six native adapters: Dhan, Upstox, Kotak Neo, INDmoney, Groww, and Delta Exchange. Availability remains evidence-gated. Native broker HTTP mutations and reads remain frozen until Task 9D and Task 7C.2; a broker session cannot currently be established through the terminal. Practice uses the local sandbox. Funded Live placement remains unproven and fail-closed.

Native HTTP freeze. Broker-account mutations (/v1 account and auth writes, native connect / login / set-primary / delete, and OAuth start / callback) return 503 with broker_account_cutover_unavailable until Task 9D migrates the handlers. Native HTTP account and market-data reads return 409 with zero provider calls until the Task 7C.2 / 8B cutover onto the in-process BrokerReadPort. Exact broker reads that already exist are that in-process port, not a working terminal Brokers screen. Service connections are an inert control plane only.

When native connect returns, Dhan, Upstox, and Kotak Neo are evidence-gated as enabled in the catalogue. Kotak Neo is Connected (read) / API smoke only after persisted REST smoke evidence — never placeable Live; Neo has no sandbox (Live read only until funded unlock.). Kotak Neo's v3 async market and order feeds are wired and locally tested with synthetic SDK clients, but no live-account or market-hours stream proof has been recorded. The previous non-funded Connected (read) evidence covers REST reads only. Upstox Developer Apps analytics tokens would connect as read-only sessions. INDmoney uses a dashboard-generated token that resets at the daily 06:00 IST dashboard cycle, but remains disabled until its smart-parent, atomic reduce-only, and live order-safety blockers clear. Groww retains its displayed activation blockers and may also require approving the API-key session in Groww Cloud before FlintTrade can mint a token. Native HTTP remains frozen until Task 9D / Task 7C.2 — Setup → Brokers still fails on the frozen routes; MSI static-IP host native read smoke uses the in-process native read path, not a restored Brokers HTTP session. Localhost postback URLs are for diagnostics unless you expose FlintTrade through a broker-reachable tunnel or public URL.

Why two layers?Copy Anchor Link

3. First Practice orderCopy Anchor Link

Before enabling any order-capable integration, exercise the order path in Practice. A fresh browser with no saved Mode opens in Practice. Password sign-in and account setup open in Practice. A fresh login opens Practice. Quick Unlock restores the existing session and keeps its Mode. Live is entered only through POST /v1/auth/live. POST /v1/auth/mode accepts only a switch to Practice.

The Mode chip in the TopBar opens the Mode menu. The menu lists Practice, Connected (read), and Live. Practice and Live are the session Modes. Connected (read) is a broker status on a Practice session, not a separate Mode. Example is sample data, not a Mode. The public web demo (/demo-app) is Demo (example data).

Switching Mode. Open the Mode chip. Its accessible name is the current label plus mode. Open the mode menu. Choose Practice for simulated fills. A sample-data session, signed in as Guest, is sent to Setup instead of switching in place. Choose Connected (read) only when a broker is connected. Choose Live only when the item is enabled. Opening the menu does not open the Live dialog. An eligible Live choice opens Switch to Live Trading? with the line You are about to switch to Live mode. All orders will be executed with real money through your broker. Enter the 6-digit PIN (Enter your PIN to confirm) and choose Switch to Live. Cancel leaves the current Mode.

When Live is locked. The Live item lists every reason that applies, in this order:

• Enrol 2FA and connect a broker — the authenticator is not enrolled, or no broker is connected. Either gap is enough for this one reason. When the authenticator is not enrolled, including after Later on Two-factor authentication, Enrol authenticator in Settings links to Settings → Security (/settings#security). The Live switch does not ask for an authenticator code.
• Create a PIN in Settings — no PIN exists. Live stays locked, and those words link to Settings → Security (/settings#security).
• Not qualified for Live — only when the place gate reports that this operator is not qualified. If that report is absent, this reason is not shown. The desk starts Down. A missing heartbeat is not painted Ready.

Example-data marker. Where a sample figure still uses the shared banner, that banner reads Example data. Connect a broker to see your own. It never shows in Practice. On Invest, an Example chip on a sample view replaces that banner. Where those chips sit is under Invest.

Order review. Practice reads Confirm places this simulated order. The confirm button reads Confirm simulation (accessible name Confirm simulated Practice order). Example data reads Example only. Nothing is sent to a broker and no order is placed. The confirm button reads Continue (accessible name Confirm Example order). Continue records a sample fill. The success line is Example order placed and the id starts with SAMPLE-. Both reviews offer Back to edit. While the confirm is in flight the button reads Confirming….

Mode, session, and sample data. Practice and Live name the session Mode. Connected (read) is a broker status on a Practice session. TopBar session chips (Continuous · CAS · Matching · Post-close · Closed) are market-session status, never Live mode. Example data uses Example Buy / Example Sell. After review, Continue records a sample fill (Example order placed, id starting SAMPLE-). Practice keeps Practice Buy / Practice Sell. Live uses Place BUY Order. Connected / green is never shown for an unconfigured subsystem.

One home per status.

• Feed lives once, at the start of the ticker. The chip is feed provenance, not a Mode. Example data always reads Example. Practice and Live may read Live, Delayed, Stale · age, or Unknown. Practice with no feed reads No live feed (Practice). The Practice ticker shows Last close prices · Connect a broker for live prices → only when the market session is not unavailable and neither the WebSocket nor a fresh REST fallback is producing quotes. The link opens /settings#brokers. An unavailable session is never labelled last close.
• Broker lives once, as the Broker row in the TopBar Status menu: Connected, Connected (read), or Unavailable, plus a plain failure when a money-path incident darkens the session. Account switching does not add a second broker row. Laya and LLM are the other rows in that menu.
• Market lives once, in the TopBar market-session chip. A confirmed closed cash session reads Market closed · opens 09:15. Unavailable timings read Market unavailable. Neither sentence is Live mode.

Market session. The TopBar market chip shows the open phase (Continuous, CAS, Matching, or Post-close). A confirmed closed cash session reads Market closed · opens 09:15, not the word Closed on its own. Unavailable timings read Market unavailable, and are never labelled last close. The chip tooltip/title is the window, for example CAS · 15:15–15:35 (as of Aug 2026). Cash is never shown as green "open" after 15:15 IST; CAS is not Closed. When equity F&O still runs after cash continuous ends, a secondary F&O open · till 15:40 chip appears. The Market Clock widget follows the same cash timeline: Continuous (~09:15–15:15) → CAS 15:15–15:35 → Matching → Post-close 15:50–16:00. Non-CAS cash still trades continuous to 15:30. There is no flat "Market open until 15:30" or "VWAP last 30 min" closing-price copy. The September 2026 consultation stays out of the UI.

Mode honesty. One line under the TopBar, always, owned by the active label. Example data reads Example data. No broker is connected and no orders are sent. Practice reads Practice — simulated fills, no real money. Live reads Live — real-money capable when a broker is Connected. Orders place only on a live session. Widgets identify illustrative and fallback figures with Sample/Example source labels. Mode is not provenance. A figure that stays fabricated in Practice and Live, such as benchmark index returns, keeps the Example chip. An incident strip, when one is showing, sits between the TopBar and this line and does not replace it.

Operator status strip. One sticky strip sits between the TopBar and the Mode line. It is Info, Degraded, or Blocked. Example-data copy and the Practice Mode line are not this strip. Live risk, a broken desk, a broker fault, or a local-network fault uses Degraded or Blocked. There is not a second banner for the same fact. While the strip is Blocked or Degraded on the money path, broker chrome normally says Unavailable or Degraded plus the failure in plain words — never Connected or Connected (read). Failure class Laya is the exception: Broker may stay Connected or Connected (read) while Live place stay muted. Other money-path classes mute Live place the same way, with one rectify line. Kill All and the safety layers stay reachable. Chat being down does not close Live orders. A public site outage does not mean the local desk cancelled broker orders.

The TopBar Status menu is the one home for Broker, Laya, and LLM. Each row has its own label, value, and one-line description. Broker's line is Your broker account for live orders and holdings. Laya's line is the current reason, or Checks every order before it is placed. LLM's line is Optional AI model for chat and suggestions. The same three rows sit in the More sheet on a narrow window. Feed provenance stays on the ticker.

The button's dot is the worst state. Example data is neutral and reads Example data only, including when Laya is Down. After that, Laya Down is red, a broker failure that marks the path unavailable is red, and Live with no broker connected is red (No broker connected). Laya Degraded, a degraded broker path, and an LLM of Error or Disconnected are amber. Checking (the summary reads Checking Laya), Still loading (Laya still loading) and Downloading (Laya starting) stay neutral. In Practice, broker Unavailable with Laya Ready is neutral and reads Broker unavailable. All systems ready appears only when no row is worse than Ready.

Broker's value is Connected, Connected (read), or Unavailable. Laya's value is Ready, Degraded, Down, Still loading, Downloading, or Checking. Laya starts Down, including before a heartbeat and when the ping omits laya. Missing status is never painted Ready. While the value is Checking, the row reads Checking Laya…. Download and model lines, and how to start the sidecar, are in Start Laya: Downloading the model · X of Y GB, Can't download the model, Wrong model version, and Can't verify the model. The refusal while orders are paused is Laya is Down. New orders are paused until it's Ready. You can still close positions. Only Live-facing Down opens the Laya Blocked strip and mutes Live place. Practice place follows the Practice chip. Live-facing Degraded leaves Live open, shows Laya Degraded — tighter limits, and does not look Blocked. LLM is Not configured, or Connected (suggest only) when Chat is ready.

Install-host disk, RAM, CPU, GPU, and network stay on Settings → Monitoring (/settings#monitoring). That page is its own Settings section. See Monitoring. It is not folded into this Broker / Laya / LLM menu.

FlintTrade does not hold client funds, reverse broker fills, or file a dispute. Rectify steps point at the broker, the exchange, or the host:

Dispute and status links, if you need them, are the broker's or the regulator's — not a FlintTrade claims desk:

• Dhan support: https://dhan.co/customer-service/ and grievances: https://dhan.co/grievance/
• Kotak Neo trade API: https://www.kotakneo.com/support/trading/trade-api-and-terminals/ and the complaint procedure: https://www.kotakneo.com/support/procedure-for-filing-a-complaint-with-kotak-securities/
• SEBI SCORES: https://scores.sebi.gov.in and SMART ODR: https://smartodr.in

Start LayaCopy Anchor Link

Laya is opt-in and starts Down. The desk does not paint it Ready until a health probe says so. Admission is fail-closed: while Laya is Down, including the first load, orders are refused. Degraded is not Ready, and it is not a refusal of every order: a place inside the tighter ceiling can continue. See Laya on place.

Chip. The label follows the active mode. Practice shows the sidecar: Ready, Degraded, Down, Still loading, or Checking. Live shows the Live-facing status. During the first load the label is Still loading and does not read Down. Orders are still refused with Laya is Down. New orders are paused until it's Ready. You can still close positions. Checking uses the neutral colour. The popover says Checking Laya…. It is not a stale Ready.

The chip tooltip is the hover text. For not_started, stopped, port_in_use, still_loading, and unreachable it is the chip label followed by . Next: python -m flinttrade_core.laya_runtime start. downloading has no tooltip and no Next line. download_failed, unverified, wrong_revision, and key_rejected keep the sentences in the table. When the sidecar is Ready or Degraded and Live is not qualified, the tooltip is Not qualified for Live. That line is not painted as Down on the Practice chip.

Clicking the chip opens a popover. It shows the chip label, the link How to start Laya (this section), and an operator-only Start Laya button. The button is there for a signed-in operator while the sidecar is not Ready or Degraded. A signed-out desk does not get it, and neither does a demo session. While the start request is in flight the button reads Starting…. If the start fails, the popover says Laya could not be started. Start Laya calls POST /api/v1/laya/start. After that click the chip says Checking in the neutral colour and the popover says Checking Laya… until the ping confirms Ready, Degraded, or a reason other than not_started. It does not show a stale Ready during that wait. A confirmed first load still says Still loading. A place refused with exactly Laya is Down. New orders are paused until it's Ready. You can still close positions. sets the chip to Down on that response. The refusal line is unchanged.

The popover prints the chip label, not the raw code. For download_failed, unverified, wrong_revision, and key_rejected it also prints the tooltip, because that sentence does not start with the label. The status word on the chip is Down, except during the first load, when the chip says Still loading. A download in progress reads Downloading in the neutral colour and is not Still loading. <n> in the port label is the sidecar port.

downloading uses the status word Downloading (neutral colour) and download_failed uses Down. Neither is Still loading. Orders are refused with Laya is Down. New orders are paused until it's Ready. You can still close positions. The downloading chip text is live progress, one decimal place, decimal gigabytes: Downloading the model · X of Y GB, for example Downloading the model · 1.2 of 3.4 GB. It has no tooltip and no Next line. A new model version uses that same chip and the same Down word. There is no separate Updating label.

When FlintTrade pins a new model version, the next start downloads it the same way. Your current copy stays in place until the new one is verified. If the download fails, you'll see Can't download the model and Laya stays Down until you retry. download_failed is that result: a dropped connection, a partial download, or a swap that put the previous copy back. An older copy on disk does not change that chip, including one whose bytes are not the pin and one that is unverified (an extra loadable file, or a missing companion whose weight digest matches). The chip stays Can't download the model, and Laya does not start.

wrong_revision is only a real mismatch: a complete download whose files do not match the pin, a copy already on disk that this start is not replacing, or a running Laya that reports another revision or digest. A dropped connection, a partial download, or a failed download or swap is not this code. A missing digest is not this code. key_rejected keeps the chip Down. Orders are refused.

When a place is refused because Laya cannot be reached, or because it rejects the key, the chip updates on that same order. A connection failure or a timeout shows Unreachable. A rejected key shows Can't reach Laya. The refusal text stays Laya is Down. New orders are paused until it's Ready. You can still close positions.

Every chip-Down refusal reads Laya is Down. New orders are paused until it's Ready. You can still close positions. That sentence is the same in Practice and in Live. It carries no quantity ceiling.

identity_absent is not a chip code. When the chip is Ready and a single decision carries no proof, the refusal code is laya_unverified and the refusal reads Not placed. Laya's decision couldn't be verified. Try again.

On each sidecar start FlintTrade hashes model.safetensors and every file in [checkpoint.manifest] before launch, and writes a runtime record for that run. The record holds the sha256, pid, and start token, and the inode, size, and modification time of the weights file and of each pinned file (<workspace>/runtime/laya/verification.json, with the token and pid also in run.json). Every stop deletes that record, as does a start that fails after it was written. A record from an earlier run is rejected. A decision without revision or sha256 is checked against that record for both admitted and clamped orders. The decision log is <workspace>/runtime/laya/decisions.jsonl. It records proof=decision when the decision carried the pin, or proof=runtime when this run's record stood in. An empty note does not call the model. An admitted Practice place still writes one line, effect=clamp with failure=note_absent and no proof, including when the quantity already fits. When this run's record stood in, each model allow keeps its own effect=allow proof=runtime line. There is no dedupe. A model decision with no proof is refused with Not placed. Laya's decision couldn't be verified. Try again. A health document that omits the digest is Ready when that record matches the pin. Laya is not Ready by default.

The pins live in packages/services/engine/src/flinttrade_engine/laya_policy.toml. [checkpoint] names revision beside sha256, and the weights file model.safetensors. [checkpoint.manifest] pins these files by sha256: rl_agent_config.json, encoder/config.json, tokenizer/tokenizer_config.json, and tokenizer/tokenizer.json. FlintTrade hashes each of them before launch. When the files are already on disk and this start is not replacing them, a missing pinned file, a shard index (model.safetensors.index.json), or any extra weights file or other file the launcher could read shows Can't verify the model and the sidecar does not start. A changed byte in a copy that this start is not replacing shows Wrong model version and the sidecar does not start. A changed byte in the runtime checkpoint starts the download below; the sidecar does not start on that tree. Laya does not reach Ready in these cases. A verified boot sets LAYA_WEIGHTS_PATH to that hashed weights file. A model already in the standard Hugging Face cache is accepted. When that file is the cache symlink (snapshots/<revision>/model.safetensors pointing at blobs/), the launch path is the snapshot file, not the blob. The sidecar loads that snapshot directory. A blob path is still refused. The boot runs offline (HF_HUB_OFFLINE=1, TRANSFORMERS_OFFLINE=1). It does not pass a repo id or a revision. When the sidecar health document leaves the revision empty, FlintTrade fills the pinned revision from the verified manifest, so the chip leaves Still loading. The launch log line is laya weights path=<path> sha256=<digest>. The recorded inode, size, and modification time are rechecked, without hashing again, when Laya reports Ready and on each watch tick, about every 1.5 seconds. If one changes, the chip shows Can't verify the model and the log line is laya weights path=<path> changed=<field>, where <field> is inode, size, mtime, or a comma-separated list of those. The same watch reads the pid file (runtime/laya/sidecar.pid), the key file (runtime/laya/api.key), and the runtime record. The desk polls GET /api/v1/ping every 1.5 seconds. That ping reconciles those same files the same way an order does, so the chip and the order gate read the same state. A command-line stop or start, or a key rotation, shows on the chip by the next 1.5-second check. After Start Laya, until the ping confirms the new state, the chip says Checking in the neutral colour and the popover says Checking Laya…. It does not show a stale Ready during that wait. An admitted place while the chip is not Ready or Degraded also shows Checking until the next ping. A place refused with exactly Laya is Down. New orders are paused until it's Ready. You can still close positions. sets the chip to Down on that response. The refusal line stays that sentence.

Command line. From the FlintTrade environment (the project .venv after setup, or uv run python):

python -m flinttrade_core.laya_runtime install
python -m flinttrade_core.laya_runtime start
python -m flinttrade_core.laya_runtime status
python -m flinttrade_core.laya_runtime stop

install creates the sidecar environment at <workspace>/runtime/laya/venv (on Linux, ~/.flinttrade/runtime/laya/venv, unless FLINTTRADE_WORKSPACE_DIR is set). That environment can share the base interpreter with FlintTrade: its python is often a symlink to the same executable, and the packages stay in the sidecar environment. The install refuses to put them in the FlintTrade environment. The default install is CPU-only torch from https://download.pytorch.org/whl/cpu, then laya[serve]==0.3.21. The constraints file pins torch==2.14.0+cpu, laya==0.3.21, huggingface_hub==1.33.0, and tqdm==4.70.1 with no extras (packages/core/core/src/flinttrade_core/laya_sidecar_constraints.txt). The download progress class subclasses that pinned tqdm.auto.tqdm. The serve extra stays on the install requirement, because a constraints file cannot name extras. Torch is installed first. The install size is roughly 1.2 GB. install --accelerator cuda and install --accelerator rocm are opt-in. start still uses CPU (LAYA_DEVICE=cpu).

start listens on 127.0.0.1 only. The port comes from LAYA_PORT and defaults to 8000. A port clash is Down with port_in_use. start writes a fresh API key to <workspace>/runtime/laya/api.key. When LAYA_API_KEY_FILE points at that same path, start replaces the file and does not treat it as missing. A different path that is not there still refuses with The Laya API key file is missing. stop stops the sidecar, deletes that key, and records Down with not_started. status prints the report, including reason and the plain-words detail, and does not print the API key. If the weights file or any pinned manifest file is not already installed, start downloads the pinned commit from [checkpoint] revision first. That step does not start the sidecar, and it does not use the default branch. The files land in <workspace>/runtime/laya/staging, not in the launch directory and not in the shared Hugging Face cache. The download sets HF_HOME to <workspace>/runtime/laya/hf-home and HF_HUB_DISABLE_XET=1, so transfer logs stay in that folder and not in the shared cache. The model is about 2.37 GB, and that size is reported once. While that runs, the popover reads Downloading the model · X of Y GB (live progress, one decimal, decimal GB). Orders are refused with Laya is Down. New orders are paused until it's Ready. You can still close positions. FlintTrade then hashes the weights file and every manifest file in the staging directory. When no checkpoint is already there, a full match renames that directory onto <workspace>/runtime/laya/checkpoint and launches the offline verified boot. Hub access stays off for that launch.

When FlintTrade pins a new model version, the next start downloads it the same way. The chip is the same Downloading the model · X of Y GB line, with status Downloading. There is no Updating label. Your current copy stays in place until the new files match the pin. On a full match, FlintTrade renames <workspace>/runtime/laya/checkpoint aside to checkpoint.old-<random> in that same runtime directory, renames staging onto checkpoint, then deletes the old copy, and launches the offline verified boot. If that second rename fails, the old checkpoint is renamed back and the chip shows Can't download the model, with the tooltip Check your connection, then Start Laya again. The sidecar does not start.

A complete download whose files do not match the pin shows Wrong model version. Staging is deleted and a checkpoint already on disk is left in place. A dropped connection, a partial or missing file, or a read error shows Can't download the model, with the same tooltip. A failed download or swap is that same chip, not Wrong model version and not Can't verify the model, whatever older snapshot is on disk. Can't verify the model stays when this start did not download. An extra loadable file in a complete download shows Can't verify the model. On any of those results the staging directory is deleted and the shared model cache is left alone. The sidecar does not start on files that do not match the pin. A copy already on disk is Wrong model version only when this start did not download.

Leftover staging directories and checkpoint.old-* copies are removed at the start of start once a checkpoint is in place, with no chip change and no message. If checkpoint is missing and one or more checkpoint.old-* copies remain, the last checkpoint.old-* name is restored onto checkpoint and any other aside copies are removed. If that restore fails, the aside copy stays where it is and that cleanup is skipped. A copy that was restored is then checked against the pin. If it does not match, Laya does not start on it; the pinned download runs instead. If that download fails, the chip is Can't download the model and the restored copy stays. A missing or extra file in a model that this start is not replacing still shows Can't verify the model. The log line for the download step is laya download repo=<repo> revision=<revision>.

Start the backend with LAYA_HOST=127.0.0.1, the same LAYA_PORT, and LAYA_API_KEY_FILE set to that api.key when the sidecar was started separately. The next health probe attaches. The host must stay 127.0.0.1.

A base checkpoint leaves Live-facing status Down. Live stays Down until that exact revision, weight digest, and policy version are qualified with LIVE_DECISION evidence. Laya is never Ready by default.

Laya on placeCopy Anchor Link

Desk place surfaces go through Laya admission. Live-facing Ready and Degraded allow a Live place attempt. Practice Ready and Degraded allow a Practice place attempt, including while Live itself is still unqualified. The chip then shows the Practice state, with tooltip Not qualified for Live. On Live, operator place and automate place run Mode guard → Laya.admit → SafetySystem → gate_order → BrokerRouter. Laya does not place the order and does not replace those layers. A refusal or a quantity clamp stops before SafetySystem. Practice place is admitted before the sandbox and does not enter SafetySystem. A body with "variety": "gtt", in any case or separator spelling, is HTTP 422 gtt_unsupported before Laya, SafetySystem, and any broker call, on place, routed place, exit-all, and a bracket. The message is Not placed. GTT orders aren't supported right now. On the server, example data is HTTP 403 mode_blocked before admission: Orders are not available for Example. Switch to Practice or Live to trade. The Order Pad on example data records a sample fill instead (Example order placed, id starting SAMPLE-). Chat is not an admission source. The model can deny or clamp. It cannot raise a quantity or overturn a hard-rule refusal.

Reason. On the Order Pad the note is collapsed under Quantity. Add a reason (optional) opens a single line. The placeholder is Optional note for this order. Once open, the field's accessible name is Add a reason (optional). It is not a required step, and an empty field does not block Place. Quick Trade, Positions square-off, Order Ladder, Scalper, and Option Chain use the same accessible name, Add a reason (optional). A place with no note still gets Laya's policy decision. Practice clamps. Live denies. It is not a hard reject. The server reason for that Practice clamp is Laya is uncertain. Quantity stays inside the tighter limit. The server reason for that Live denial is Laya is uncertain. Live stays closed. When the requested quantity is greater than the allowed one, the Order Pad clamp notice shows the clamp sentence below, not the Practice reason line. Deny. Order Pad and Quick Trade show Laya denied, then the server reason. The denial is one alert (role="alert"), the only live region. The reason line is named Laya decision and is not its own status. When the server sent a quantity ceiling, the next line is Max quantity N. A Down refusal does not show that line. The reason is Laya is Down. New orders are paused until it's Ready. You can still close positions. Place controls stay off until Laya or the mode changes; you can then retry. Kill All stays reachable. A single decision with no proof, while the chip is Ready, is not that Down refusal. The notice reads Not placed. Laya's decision couldn't be verified. Try again. The code is laya_unverified. A denial is not a Chat outage: the LLM label stays Not configured or Connected (suggest only), and the Chat strip stays Info.

Clamp. A clamp is only when the requested quantity is greater than the allowed one. Nothing is placed until you click. Laya never auto-places the reduced quantity. Order Pad and Quick Trade show Not placed. Laya allows up to N. with Place N and Cancel. Place N sends that quantity through the same place path. On Order Pad, Review Practice order then shows that placed quantity. When the request is already at the allowed quantity, that place is admitted. Place 1 on Not placed. Laya allows up to 1. places. Practice still reaches the sandbox only after that admit. On Live, an admitted quantity continues to SafetySystem and gate_order. Cancel places nothing.

Degraded. Live-facing Degraded leaves Live open. The desk says Laya Degraded — tighter limits on the Status menu and under those place controls. That line is not the Blocked strip, and it does not mute Live place. The chip shows Degraded when Live itself is Degraded. Practice Degraded applies the tighter ceiling to a Practice place.

Down. Laya starts Down. The chip label follows the current mode. See Start Laya. In Practice it shows the sidecar state and does not read Down while a Practice place can be admitted. Not qualified for Live is the chip tooltip. Only Live-facing Down opens the Laya Blocked strip and mutes Live place. Practice is not muted by that strip. While that mute is up, the Live place control does not also show Laya denied. Kill All stays reachable. Broker may stay Connected or Connected (read). A Practice place is refused when Practice itself is Down. The server reason, in every mode, is Laya is Down. New orders are paused until it's Ready. You can still close positions. There is no quantity-ceiling line. A Practice refusal never says Live. A Live place while Laya is Ready or Degraded, without a matching qualification record, says Laya isn't qualified for Live yet. Practice orders are available. Start the opt-in model before a Down engine can admit.

A close the server classifies as reduce-only is still admitted. The success line is Closed. Exits are allowed while Laya is Down. Cancel-all only cancels and stays reachable. Layer 5 cancels resting orders and then flattens; they are separate from cancel-all. Connected (read) is a broker status, not a Mode.

Chat. Chat never shows Admit or Approved by Laya. Chat being offline does not close Live.

Order Pad and Quick Trade are the surfaces that show the deny and clamp notices. Scalper, Positions, Order Ladder, and Option Chain may still show a place error as a toast. An automate clamp is a dispatcher error, not a desk confirm. Modify, cancel, smart, multi, and other non-place write verbs are not on this admission. POST /api/v1/orders/forever does not place. A valid body is HTTP 501 Orders are placed through /api/v1/orders/place. No submit route reaches a broker forever or super-order endpoint. A Live bracket with exactly one stop-loss or one target is POST /api/v1/orders/bracket: each leg is admitted, then placed through SafetySystem. Practice is HTTP 403 practice_unsupported. A broker-held variety, a stop-loss and a target together, and a trailing stop are refused before that admission. Order Pad keeps GTT visible and disabled, with the tooltip GTT orders aren't supported right now.

Feed freshness. Feed provenance lives on the ticker chip, not in the Mode line. Example data reads Example. Practice and Live may read Live, Delayed, muted Stale or Unknown plus age when known, or No live feed (Practice). Silent-stale is a fail. This is provenance, not a Mode — Live mode does not imply a Live feed.

Compact / Comfortable. New installs default to Comfortable (full labels). Compact on a desk Trade viewport (~1280 and wider) keeps chart, order pad, and positions primary; the ticker strip, full tool ribbon, and watchlist / indices / advanced tools start collapsed behind Watchlist & tools / Desk tools. Quick Settings stays on the TopBar so density and theme remain reachable. Selecting Compact again re-collapses that disclosure. Phone layouts are unchanged.

Desk chrome (FT-UX-002). The desk uses one TopBar and one scrolling ticker strip. TopBar keeps Mode, session/status, and overflow — it is not a second quote rail, so dual index slots in TopBar are gone. Tools → Quick Settings opens density, theme, and similar controls without leaving the desk. Tools → Settings opens the full /settings route for deep pages (Monitoring, brokers, auth). There is no separate Settings gear. When Compact Trade collapses the tool ribbon, Quick Settings stays on the TopBar; expanding desk tools puts it back in the Tools menu. A desk that offers only full Settings, with Quick Settings removed, fails this bar. The flex shell is TopBar, then the operator status strip when one is showing, then the Mode honesty line, then the ticker strip, then the route body. Trade uses that shell first; the same shell then rolls to Invest, Automate, Learn, and Ditto. This is not a silent widen of Compact-only-on-Trade (FT-UX-001). Mode and status stay reachable (desk-first; skinny-browser defensive collapse is fine).

Ticker venue badges (FT-CORE-TICKER-001). Pinned badges match the venues that feed the marquee: NSE, BSE, and MCX on the default tape, and NFO when an F&O symbol feeds. A venue with no feeding symbol is omitted. Symbols that do not resolve to a venue show Unavailable. An empty tape omits the badge strip. The marquee runs continuously when motion is allowed. With prefers-reduced-motion: reduce, the tape freezes and shows Reduced motion. The feed chip may read Example; it must not hide venue honesty.

WalkthroughCopy Anchor Link

1. Open /trade (http://127.0.0.1:5100/trade on the installed web app; http://localhost:5173/trade on the Vite dev server).
2. A fresh desk is already in Practice. Open the Mode menu if the chip says Example and choose Practice (a sample-data session is sent to Setup). Practice does not ask for a PIN. The UI calls POST /v1/auth/mode so the session matches. To look at sample data instead, use Try with example data from Welcome or sign-in.
3. Open + Widget (the dialog title is Add Widget) and choose Order Pad, or pick a preset that contains it. If an Order Pad is already open, choosing it again focuses that pad. It does not add a second one.
4. Type NIFTY into the symbol field; FlintTrade autocompletes the current front-month future. Select it.
5. Set Quantity to 1 lot. After you select the future, Order Pad auto-fills Quantity from that instrument's current lot size — do not hardcode 50. Learn Glossary follows the loaded instrument master rather than fixed example figures. Choose MARKET. Side = BUY.
6. Click Practice Buy and confirm the review (Confirm simulation). The sandbox order appears in the Positions widget immediately; the Orders widget shows it as filled (simulated). Example Buy on example data opens the example review (Example only. Nothing is sent to a broker and no order is placed.). Continue records a sample fill on this pad: Example order placed, with an id starting SAMPLE-. That fill stays on the pad and does not call the order API.
7. Close the position from the Positions widget. Practice square-off posts an opposite order to POST /api/v1/orders/place. Confirm your simulated P&L is recorded in the P&L Monitor widget. Settings → Practice changes virtual capital and square-off times. It does not place an order.

A Practice place is admitted before the sandbox. When Practice itself is Down, a new place is refused with Laya is Down. New orders are paused until it's Ready. You can still close positions. and nothing is filled. A close that only reduces an open position is still filled, and the success line is Closed. Exits are allowed while Laya is Down. A second exit on that contract, while one of yours is still unfilled, is refused with Not placed. An exit for <symbol> is already pending. Wait for it to fill, or cancel it and try again. and the row shows Exit pending. The label is the symbol, or this contract when the symbol is empty. The desk chip follows the current mode. When Practice can admit, the Practice chip shows Ready or Degraded from the sidecar and does not read Down. Not qualified for Live is the tooltip, not a Down label. Until a stop or a start is confirmed, the chip says Checking and the popover says Checking Laya…. When admission allows the quantity, the path is front-end → JWT guard → mode guard → Laya.admit → FlintTrade sandbox → simulated fill → REST refresh of Positions and Orders. No real money moved. A refusal or a quantity clamp stops before the sandbox. Example Buy never enters that path. Restoring a Practice backup marks those fills Restored (tooltip Restored from backup. Not sent to a broker or checked by Laya.). Performance shows Excludes N restored fills when N is at least 1, and hides that line when N is 0.

Estimated charges. Every Practice fill runs through the same Indian statutory calculator the backtest uses: STT, the exchange transaction charge, the SEBI fee, stamp duty, and GST. The shared table records the exchange and the date each rate took effect. Brokerage is not in that table. Practice has no broker contract rate, so a fill never says Brokerage. The fill shows one line, Charges ₹X (estimated), on its own line under the price. It expands to STT, the exchange transaction named from that fill (NSE transaction or BSE transaction), the SEBI fee, stamp duty, and GST. The Simulated at last close tag stays on its own line.

Positions and Performance show net P&L. Gross P&L and the charges total sit in the tooltip only. Home and Invest subtract those estimated charges from net worth. In Practice the source line reads Practice account, after estimated charges. Net worth is ledger cash, including blocked margin, plus holdings at market value, plus each open position's contribution (options at signed market value, futures at unrealised P&L), minus those charges. Opening a future does not add its notional.

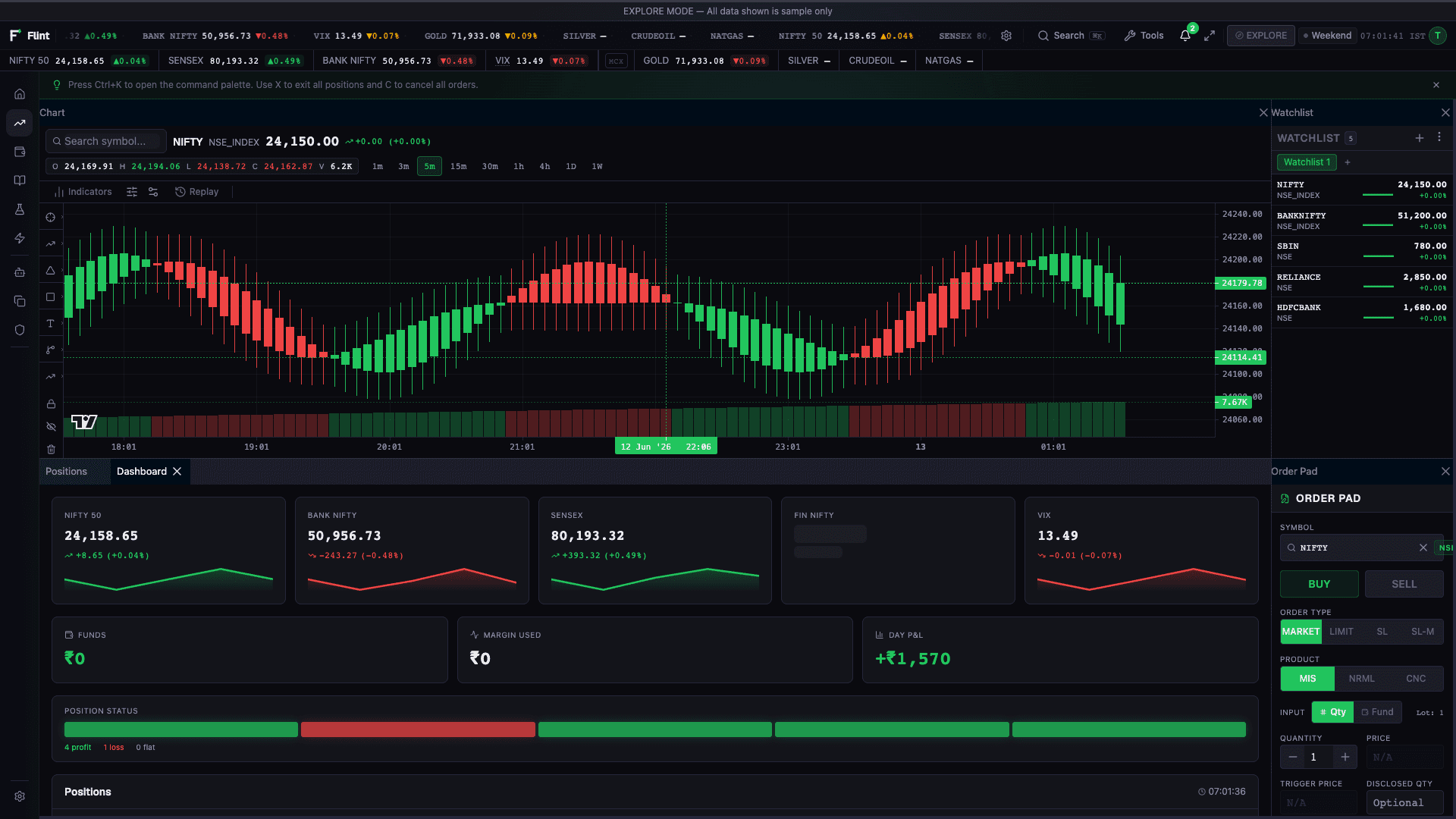

The /trade workspace with FlexLayout tabs, order pad, positions, and chart.

On example data, /trade Positions → Heat, Group by Exchange and Group by Sector draw a labelled band per group (name chip plus exposure when there is room). Flat stays leaf-only. Positions with no exchange metadata show No exchange groups in these positions instead of an undifferentiated treemap.

On /trade Trade Review, Performance uses the same date range as Log and the other Review tabs. Changing Review dates updates Performance. A visible Review range | YTD control keeps YTD as an explicit choice; the active chip shows the effective window (for example Review range · 05 Sep–11 Sep 2026 or YTD · 01 Jan–11 Sep 2026). Opening Performance stays on the Review range rather than jumping to YTD. An empty range or no fills is an honest empty for that window, not a quiet YTD fallback. Metrics cover the labelled window up to the journal's 1,000-fill analytics page; a larger window is disclosed rather than silently sliced.

With example data, /trade Analysis layout, OI Chart shares the Option Chain expiry list for that symbol/exchange. When the list is non-empty, the expiry control is shown and charts/statistics cover only the selected expiry (the chain’s selected expiry when both widgets are open; otherwise the nearest listed). Example-data expiries stay listed. The Mode honesty line is the disclosure — there is no second Example chip on the chain. No expiries or no OI is an honest empty — No expiries for this symbol or No OI for this expiry — with no bars and no PCR/max-pain stats. The widget never pairs “No expiries” with generic or sample bars.

With example data, /trade Watchlist checked LTP and % change columns paint their headers and cells. Those values use the same sample quotes as the ticker tape. A missing quote shows — after a brief …, never a silent blank. Unchecking a column hides it (FT-TRADE-008).

Selecting a symbol in /trade Watchlist retargets Chart, Option Chain, and Scalper to that symbol — no retype. Retarget on example data is allowed. An empty watchlist never silently retargets (FT-TRADE-011).

With example data, /trade → Scalper, Buy CE, Sell, and 1-CLICK stay disarmed — the same honesty class as Settings → Telegram Test Send. They never open Confirm Order and never place. Helper: Orders are blocked for Example. Switch to Practice or Live with a broker connected to trade. 1-CLICK stays OFF and disabled; its title is One-click is unavailable for Example. Sample quote preview is allowed; there is no Confirm BUY / Confirm SELL chrome. Practice and Live open Confirm only when the Mode allows it and a gateway is configured. The backend refuses an example-data order if the UI slips (FT-TRADE-009).

Learn → Practice TradingCopy Anchor Link

The tab explains: “Practice is built in. Open the Trade desk and place a simulated order, no broker needed.” Choose Practice from the Mode menu, then use Open Trade desk to open /trade. The link preserves the selected Mode; it does not silently switch to Practice or Live. Use the Order Pad to place a simulated order, then review simulated orders, positions and P&L. Practice uses virtual funds, and simulated fills do not guarantee the same results in Live trading. Broker sandbox setup is not a prerequisite.

Under /learn → Glossary → Lot Size, the index-lot line follows the loaded instrument master, with contract expiry months where available. When a newer master loads, the line updates with it. The Verify on NSE link remains available. Check the selected instrument's current lot size before placing an order; dated example figures are not a substitute for the current master.

Learn → Resource Hub (local documents)Copy Anchor Link

With example data, /learn → Resource Hub opens project docs from the local FlintTrade backend (USER_GUIDE.md, ORDER_SAFETY.md, and the other listed cards). First open shows Loading document… while that local load settles — it never flashes a red backend error on a cold-start race. A timeout or race is a muted soft fail: Document isn’t ready yet. plus a primary Retry (one automatic retry is allowed). The red Couldn’t load this document from the local backend. line plus Retry is reserved for a hard fail after retry is exhausted. Order Safety Notes already loading in the same session does not treat User Guide as permanently broken (FT-LEARN-003).

4. Live-mode safeguard verificationCopy Anchor Link

Live mode can send real orders through a configured broker path. This guide does not recommend or instruct a live order; use this section to verify the software safeguards, prompts, and recovery controls in a local setup.

Pre-flight checklistCopy Anchor Link

• Your FlintTrade JWT is fresh — it expires daily at 8 AM IST.

• The authenticator is enrolled. After Later on the Two-factor authentication card, the Live menu stays locked and Enrol authenticator in Settings links to Settings → Security (/settings#security). The Live switch does not ask for an authenticator code. Example and Practice stay password-only until enrolment. First-run Setup does not unlock Live.

• An exactly 6-digit PIN is set under Settings → Security (/settings#security). With no PIN, Live stays locked and shows Create a PIN in Settings, linking to that same page. Once Live is eligible, the switch asks for this PIN. Quick Unlock uses the same PIN to reopen the current Mode.

• The 5-layer safety system is active (see DEVELOPER_GUIDE.md).

• In Live, the Laya chip is Ready or Degraded if you intend a Live place attempt. The chip follows the current mode and does not invent Ready. In Practice it shows the sidecar state. Not qualified for Live is the tooltip when Live has no matching qualification record. Down shows Laya is Down. New orders are paused until it's Ready. You can still close positions. and mutes a new Live place. Close and Square off stay available. A base checkpoint leaves Live unqualified. Degraded keeps Live open and shows Laya Degraded — tighter limits. A Practice place is refused when Practice itself is Down. After Start Laya, until the ping confirms the new state, the chip says Checking and the popover says Checking Laya…. See Start Laya.

• Daily P&L pause and hard-stop percentages are configured in Settings → Risk.

• You have read the risk and user-responsibility notes in disclaimer.md.

Operator and automate Live place run Mode guard → Laya.admit → SafetySystem → gate_order → BrokerRouter. Laya does not place the order. A refusal or a quantity clamp stops before SafetySystem. See Start Laya and Laya on place.

WalkthroughCopy Anchor Link

1. Open the Mode menu and choose Live when it is enabled. Switch to Live Trading? warns that real orders will be placed and asks for your exactly 6-digit PIN (Enter your PIN to confirm). It does not ask for an authenticator code. After Later on the Two-factor authentication card, Live stays locked and Enrol authenticator in Settings links to Settings → Security. With no PIN, Live stays locked on Create a PIN in Settings. POST /v1/auth/live refuses 403 totp_required until the authenticator is enabled. Quick Unlock reopens the same Mode the session already had, with the correct PIN, and never changes the Mode. Set the PIN under Settings → Security (/settings#security) first if you have not already — see Idle lock and Quick Unlock.
2. Cancel the modal unless you are deliberately performing your own broker-side test outside this guide.
3. Confirm the UI clearly shows Live mode, the active account, and the configured safety thresholds before any order-capable action is available.
4. Return to Practice mode and repeat the order-path walkthrough in the sandbox before continuing development work.

If anything looks wrong during live-capable testing, hit the Kill Switch on the /trade workspace (Live mode only). Activate and reset also live under Settings → Risk & Safety. It cancels open orders and then flattens positions through the emergency broker path. It does not use a separate close-position route. Cancel all only cancels open orders. The kill switch fires only when you explicitly activate it from the UI, API, or configured Telegram command. Layer 4 daily-loss thresholds block subsequent new orders but do not cancel orders or flatten positions.

5. Workspace tourCopy Anchor Link

FlintTrade's workspace is a FlexLayout canvas. Every widget is a panel you can drag, tab, stack, float, or pop out into its own window. Layouts persist in workspace.json inside your platform-specific workspace directory and sync across sessions:

See Settings reference for what else lives there.

Finding your way aroundCopy Anchor Link

• Sidebar. Home, Trade, Invest and Learn sit at the top; Tools holds Strategy Lab, Automate and AI Centre; Manage holds Accounts; Settings is pinned at the bottom. Each page opens with a header whose title matches its sidebar label. Below 768px the sidebar becomes a drawer behind the menu button at the top left.
• Top bar. Search (symbols, pages and commands; also Ctrl+K or ⌘K), the Mode menu, one market chip (NSE session and IST clock), the Status menu (broker, Laya and LLM), Ask AI, Tools (Quick Settings and Settings), full screen, notifications and your profile. The account switcher appears once a broker account is connected. Feed provenance is the chip at the start of the ticker.
• Trade desk toolbar. The active workspace, + Widget (opens Add Widget), Layouts and, on a Compact desk, Watchlist & tools.
• Tips appear under the page header and can be dismissed; Settings can bring them back.

The main routesCopy Anchor Link

First-run Setup finishes on the Practice desk. That desk is Step 2 or 3. With no operator yet, Setup starts at Create operator. When an operator already exists and Setup is unfinished, /setup resumes at Step 2 or 3. The step total is fixed before step 1, from whether this machine's vault is already secured.

When the backend has already secured the vault, Setup skips the vault step. The titles stay Step 1 of 2 - Create operator, then Step 2 of 2 - Practice desk. That path never shows "of 3". An unfinished operator on that path resumes on Step 2 of 2 - Practice desk. On that Practice step only, Your vault is set up and secured on this machine. appears above Open Practice desk. The line under the title on that last step is 1 of 2 completed - last step.

When the vault is not yet secured, Setup keeps three steps: Step 1 of 3 - Create operator, Step 2 of 3 - Vault, and Step 3 of 3 - Practice desk. An unfinished operator resumes on Step 2 of 3 - Vault until the vault opens, then on Step 3 of 3 - Practice desk. The vault step asks for a master password and Open vault. The secured-vault line above Open Practice desk stays on the two-step path only. The last-step line is 2 of 3 completed - last step.

Before the create-operator form is shown, and again if a later status read fails, a failed setup-status check stays on that failure. Retry is the button. The fresh-install form does not open.

• HTTP 429: FlintTrade is busy. FlintTrade is busy right now. Wait a moment, then retry.
• Any other HTTP error, or a response that cannot be read or is incomplete: Can't check setup status. FlintTrade answered, but setup status couldn't be read. Retry in a moment.
• Only when nothing answered: FlintTrade backend unavailable, with Retry. On the screen before Setup fields mount, the detail is Start or restart the local FlintTrade backend, then retry. Setup has not advanced and no account, broker, or credential details were submitted from this screen. Return to welcome sits beside Retry. If that same network failure is the later status read, the detail is The FlintTrade backend did not answer. Start or restart the local FlintTrade backend, then retry. and the only button is Retry.

A second create while an operator already exists, including two creates that overlap, is refused. The account service raises Account already set up. POST /v1/auth/setup answers HTTP 409 with code operator_exists and message Request conflicts with the current state. Setup shows This machine already has an operator. Sign in to finish setup. A conflict that is not operator_exists still shows Request conflicts with the current state.

Reloading /setup mid-flow resumes the unfinished setup in this browser and keeps the same step title. A run whose vault was not secured at the start still shows Step 3 of 3 - Practice desk and **2 of 3 completed

• last step** after the vault opens and after a reload. That title does not become "of 2". The same tab restores the setup session and continues the current step.

A fresh browser, or a reload on the vault step that needs a setup session, shows Continue setup and This machine already has an operator. Sign in to finish setup. Enter the password and choose Continue setup to carry on. That screen does not open the create-operator form. On a vault-step reload the step title stays put (for example Step 2 of 3 - Vault).

Start over (deletes this unfinished operator) asks once: Enter your password to delete this unfinished operator. Confirm with the red Delete and start over button, or choose Cancel. That deletes the unfinished operator and restarts at step 1. That is the start-over control on the vault step. A workspace data wipe is not required.

After Setup completes, opening /setup does not restart step 1. A signed-in operator is sent to the desk at /trade. A signed-out operator sees Setup is complete. Sign in to open the desk. Sign in is the primary button and opens /welcome. Open Settings is the secondary button.

An operator database that already existed before setup completion was recorded is marked setup-complete the next time FlintTrade opens it. That mark covers only the operator rows already in the database. An operator created after that change starts unfinished and still walks through Setup. For an operator marked complete, /setup does not restart step 1. A signed-in operator is sent to /trade. A signed-out operator sees Setup is complete. Sign in to open the desk.

Open Practice desk affirms Practice and lands on /trade. After the affirm, the desk shows a one-line strip. The step total fixed above does not change. With nothing skipped the strip reads Optional setup · N of 4 done. N counts finished cards only. Skipping a card does not increase N. When at least one card is skipped, the strip adds the skipped count: Optional setup · N of 4 done · M skipped. When M is 0, that · M skipped clause is left off.

Show expands the cards in place. Hide collapses them. Dismiss on the desk removes the strip there and leaves the same reminder at the top of Settings. The Settings reminder has Show and Hide. It has no Dismiss.

The four cards use these titles, with no " — later" suffix: Two-factor authentication, Broker connect, LLM, and Trading defaults. A card that is still open offers Set up and Later, except Broker connect, which offers Continue without a broker and Set up only while that card is neither done nor skipped. A skipped card shows a Skipped tag and only Set up (no Later, and no Continue without a broker). A finished card shows a Done tag and only Set up (no Later, and no Continue without a broker). Later on the card row marks that card Skipped and updates the strip. Later inside an open authenticator, LLM, or trading-defaults panel only closes the panel. It does not mark the card Skipped or Done, and the strip does not change. The authenticator panel's actions are Enrol and Later. Card-row Later buttons, and Later in the open LLM and Trading defaults panels, are announced as Later {title}.

/home is the canonical Home / Welcome dashboard. A signed-in operator who opens it (address bar, refresh, or same-tab bookmark) sees the same Home as sidebar Home, Alt+H, or the TopBar logo — never the password Welcome Back gate. That gate stays on /welcome for unauthenticated visitors only (FT-HOME-003).

HomeCopy Anchor Link

The Home greeting card stays on the dashboard. It uses the saved display name. When that name is missing, or it is the placeholder Trader, the greeting uses the username, unless the username is missing or is also Trader. Until a name is known, the line is plain Good morning, Good afternoon, or Good evening from the Asia/Kolkata hour. The card never greets the operator as Trader. Editing the display name replaces the greeting. There is no greeting toast.

Home and Invest share one net-worth figure: ledger cash, plus the market value of holdings, plus open positions. On Invest the label is Net Worth (Cash + Holdings + Positions). Ledger cash includes blocked margin. It is not the available margin, so opening an F&O position does not reduce Net Worth by its margin. A Practice round trip at an unchanged price leaves Net Worth at the starting cash, for example ₹10,00,000. Options add signed market value (last traded price × quantity when that price is positive, otherwise the entry price × quantity). A long is positive and a short is negative, because the premium has already gone through cash. Equity positions that are not already holdings do the same. A flat position adds nothing. Futures add unrealised P&L (last traded price minus a base, times signed quantity):

• Dhan's ledger already includes earlier days' mark-to-market. The base is the mark-to-market average (buyAvg on a long, sellAvg on a short). When that average is absent, the base is costPrice, and the figure is approximate.
• Kotak Neo's ledger also includes earlier days' mark-to-market, and an open future has no settlement price. The base is the open-leg average, and the figure is approximate.
• Practice does not put futures mark-to-market into the ledger and has no settlement price. The base is the entry price. Practice never marks the figure approximate.

The positions note, while the figure is exact, reads Options at market value, futures at unrealised P&L.

When an open future uses an estimated mark, the amount shows ≈ before the rupees, in the same size and colour. Dhan sets that mark when the base is costPrice. Kotak Neo sets it on an open future. Practice never sets it. It clears when that position goes flat or its mark is the average. One future names its symbol in the tooltip; two or more say the count, for example 2 futures positions. Dhan, when the average price was missing, uses Approximate. Your broker didn't send an average price for NIFTY-JUN2026-FUT, so profit or loss from earlier days may be counted twice. for one future, and Approximate. Your broker didn't send an average price for 2 futures positions, so profit or loss from earlier days may be counted twice. when more than one fall back, with the count in place of 2. Kotak Neo uses Approximate. The price for NIFTY25JUNFUT is estimated from the open position's average, so profit or loss from earlier days may be counted twice. for one future, and Approximate. The price for 2 futures positions is estimated from the open position's average, so profit or loss from earlier days may be counted twice. when more than one are estimated, with the count in place of 2. When both kinds are open, the tooltip joins them: Approximate. Your broker didn't send an average price for NIFTY-JUN2026-FUT, and the price for NIFTY25JUNFUT is estimated from the open position's average, so profit or loss from earlier days may be counted twice. Each subject is that future's symbol, or N futures positions when several share that kind. While the figure is approximate, this tooltip replaces the positions note on the same labels. The screen-reader name of the amount is Net Worth, approximately …, using the same rupee figure and no second ≈. Allocation percentages are not marked.

On Home, ≈ and that tooltip sit on the Net Worth amount. The Net Worth label carries the same tooltip and does not itself show ≈. On Invest Dashboard, the label Net Worth (Cash + Holdings + Positions) carries that tooltip, and ≈ with the same tooltip sit on the amount under it. Available Funds on that dashboard uses the same amount format, so it also shows ≈, and it has no tooltip. On the Net Worth view, the label Known Total (Cash + Holdings + Positions) carries that tooltip, and ≈ with the same tooltip sit on the amount under it and on the Open Positions value. That line is shown only when the positions contribution is above zero. The donut centre (tracked) shows ≈ on the same total and has no tooltip. Cash on that view is not marked.

Home allocation shows a labelled Example split (Equity, MF, Gold, F&O) until funds, holdings, and positions have all loaded successfully. If any of those books is still loading or has failed, the split stays on that Example mix. The sample-data Home keeps that mix. After all three succeed on an account, the bar is the account split: Cash, Positions, and Equity. The Example label sits on that split only while it is the example mix. While holdings or funds are still loading, Invest Dashboard shows Loading portfolio data... and the Net Worth view shows —. After those books settle, both leave the total as — until the position book has loaded. A position book that is still loading or has failed does not publish the total.

The sample book does not wait on a position book.

On an account, Home shows — while the position book is pending or has failed, the same check Invest uses. It does not draw a cash-only figure. The amount appears once positions have loaded. A negative Net Worth is drawn as the number, for example -₹50,000, or ≈ -₹50,000 when the mark is approximate, the same as on Invest.

On Home, each open position's P&L percent is derived from cost: the absolute average price times quantity. Dhan and Neo do not send a percent. When cost is missing or not above zero, or the profit figure is missing, the percent is —.

InvestCopy Anchor Link

Invest sections are Overview, Holdings, Analyse, Discover, and Tax.

A leaf hash opens that view inside its section. #sip opens Holdings → SIPs. #networth opens Overview → Net Worth. #mutual-funds opens Holdings → Mutual Funds. #mf-optimizer opens Discover → MF Optimizer. #basket opens Holdings → Baskets. #sector-rotation opens Analyse → Sector Rotation. A section hash opens that section's first view: #overview opens Dashboard, #analyse opens Sector, #discover opens ETF Screener, and #tax opens Tax. #holdings is the Holdings view, so it opens Holdings → Holdings. An unknown hash opens Overview → Dashboard. The selected view stays available from that hash when the skill level would otherwise hide it.

Overlap. With zero or one fund or basket, Overlap shows No holdings to compare yet. Overlap appears once you hold two or more funds or baskets. The view opens at two or more. The sample book appears only in the web demo, labelled Demo (example data), or with an Example label before any account snapshot exists. Practice with no holdings always shows the empty state.

Benchmark. Hard-coded index returns carry the Example chip in every mode, and each index name also shows an Example label. With real holdings, the series legend is Your holdings (unrealised). That legend replaces Your Portfolio (since first buy). Its tooltip reads Gain or loss on the shares you hold now, compared with what you paid. Sold shares and dividends aren't included. The comparison's accessible name is Unrealised return on holdings. That row carries no Example mark. When the holdings are example data, that row is Your Portfolio and keeps an Example label. With no holdings, the row is plain Your Portfolio, shows —, and Add holdings to compare against benchmarks. Benchmarks beaten, alpha, and the other outperformance figures are replaced by Comparison needs real index data. That note is shown whenever there are holdings, including on the sample book. The view also reads Benchmark data is illustrative. Live index data requires a market data subscription. and Returns are absolute (not annualised) for periods under 1Y.

Example chips. Sector, Sector Rotation, Shareholding, ETF Screener, Social, ETFs, Risk-Return, and Correlation use the Example chip on sample figures. They do not use the Example label. Shareholding omits the chip when the read has failed. In Example, Social shows exactly one Example chip, and only after loading has finished. In Example, ETFs show one Example chip and Example prices. Connect a broker for live quotes. Practice and Live keep live quotes via the native gateway. Refreshes every 30s. In Example, Sector's header reads Example sector split. Connect a broker to see yours. and the footer reads Example data. Not from your holdings. That view has one Example chip. In Example, Baskets show one Example chip, including while quotes are loading and after they have loaded. Seeded cards do not add a second marker. Seeded example baskets disable Edit and Delete, with the title Example basket — editing unavailable. Baskets created in Practice or Live keep Edit and Delete. An empty Baskets view reads No baskets yet.

Holdings. On example data, the Holdings view shows one Example chip when the book is sample data. The Investor Dashboard header badge reads N holdings and matches that table. On a sample book the badge has an Example label beside it. The Holdings toolbar reads N stocks for the same count. The banner Example data. Connect a broker to see your own. is not repeated on the view, and it never shows in Practice. A cold load waits until the holdings query has settled before the sample fallback, so a pending book is not covered by the sample count. Practice waits until that query has settled empty. A failed holdings read shows Failed to load holdings and Refresh, and does not show 0 holdings, No holdings, or a sample table under that failure. An empty connected book shows 0 holdings and No holdings. An account snapshot replaces the sample book, including a Practice snapshot with cash and an empty holdings list.

Dashboard and Net Worth figures. Net Worth, Available Funds, Invested Value, and Day P&L on the Dashboard show their final formatted value on the first frame in every mode, with no count-up from zero, including ≈, -₹50,000, and —. The sample Dashboard marks the inline sample XIRR with one Example chip (XIRR plus that chip). Portfolio Allocation on that sample dashboard omits Equity + Cash from your connected broker. Debt / MF requires NAV data source. and does not carry its own Example chip. A connected book keeps that sentence. There is no Portfolio XIRR card. With no holdings, the inline XIRR is omitted. On sample figures, /invest#networth reads Example equity and cash. Connect a broker to see yours. The allocation label is Allocation with the Example chip. Equity Holdings and Cash leave their notes blank on example data, and those rows do not carry their own Example chip. A connected book keeps Live equity and cash from your connected broker. Other asset classes require additional data sources., the label Allocation (live assets only), and the note Live from broker. Those sentences follow the sample-figure flag, including a Practice book that has fallen back to sample holdings. The Example chip paints only on example data, so that Practice fallback shows the example sentences without the chip. Practice does not mark the XIRR figure as Example. The connect banner Connect a broker in Settings → Brokers to see your real holdings, SIPs, and portfolio value here. is hidden in Practice.

Mutual funds. With example data, /invest#mutual-funds labels the static fixture Example NAVs · as of 10-Sep-2026 on the view header and again on the disclaimer, and does not claim "Updated daily after market close." The as-of date is the fixture date and does not auto-update. Practice and Live keep Search Indian mutual funds with live NAV data from AMFI. Updated daily after market close. when the live feed is in use.

Cash. Available Funds on Dashboard is the balance left after blocked margin. The Net Worth view's Cash line is the ledger, including that blocked margin, so opening a position does not shrink the total by the margin. Both show full rupees, in Indian grouping, with no paise. When the total is approximate, Available Funds shows ≈ as well. Cash on the Net Worth view does not.

The widgets (71)Copy Anchor Link

Widgets are organised into three categories — Trading / Analysis / Utility — under packages/apps/terminal/src/widgets/. The lists below are generated from the widget registry (packages/apps/terminal/src/layout/widgetFactory.tsx) and are exhaustive:

• Trading — Scalper, Positions, Fills, P&L Monitor, Orders, Holdings, Order Pad, Action Centre, Trade Copier, Smart Order, Portfolio Allocation, Quick Trade, Risk, Strategy Monitor, DOM / Ladder, Forever (GTT) Orders, Super Orders, and Conditional Triggers
• Analysis — Chart, Market Overview, Option Chain, Historical Chain, OI Analytics, Straddle & Implied Move, Greeks, Dealer Gamma, Arbitrage Scanner, Pattern Detection, Tape & Microstructure, Vol Surface, IV Smile & Skew, Straddle P&L, Order Flow, Portfolio Optimiser, Condition Scanner, Pivot Points, Volatility Cone, VWAP Bands, Correlation Pairs, Multi- Timeframe, PCR Trend, Instrument Compare, Greeks Matrix, Gap Analysis, Correlation Matrix, Delivery Data, DOM Heatmap, Portfolio Pivot, and Seasonality
• Utility — Watchlist, Index Strip, Calculator, News Feed, Ticker, AI Advisor, AI Backends, AI Team, Obsidian Vault, Price Alerts, Reconciliation, Funding Rates, Currency Converter, Earnings Calendar, Strategy Templates, Audit Trail, Economic Calendar, Expiry Countdown, Market Clock, Trade Ideas, Tick Speed, and Journal Entries Every widget is registered in packages/apps/terminal/src/layout/widgetFactory.tsx.

+ Widget on the trade desk opens Add Widget. Choosing Order Pad when one is already open focuses that pad. It does not add a second Order Pad. A watchlist Buy or Sell retargets that same open pad.

Market Clock uses the same CAS-aware cash timeline as the TopBar (Continuous → CAS → Matching → Post-close → Closed), not a flat 09:15–15:30 "open" window (FT-CORE-001, as of Aug 2026). When F&O still runs after cash continuous ends, the TopBar may show F&O open · till 15:40. Non-CAS cash still continuous to 15:30.

Feed provenance lives on the ticker chip. Example data reads Example. Practice and Live may read Live, Delayed, muted Stale or Unknown plus age when known, or No live feed (Practice). The Practice ticker shows Last close prices · Connect a broker for live prices →, linking to /settings#brokers, only when the market session is not unavailable and neither the WebSocket nor a fresh REST fallback is producing quotes. Unavailable timings read Market unavailable and are never labelled last close. Feed provenance is independent of Practice, Connected (read), and Live, so silent-stale is a fail.

With example data, /trade Watchlist checked LTP and % change columns use the same sample quotes as the ticker tape. A missing quote shows — after a brief …, never a silent blank (FT-TRADE-008). Selecting a watchlist symbol retargets Chart, Option Chain, and Scalper to that symbol. An empty watchlist never silently retargets (FT-TRADE-011).

With example data, /trade Scalper (including the Scalper Zone preset), Buy CE, Sell, and 1-CLICK stay disarmed. Helper: Orders are blocked for Example. Switch to Practice or Live with a broker connected to trade. There is no Confirm Order path from example data (FT-TRADE-009).

With example data, /trade Option Chain, the strip shows OI profile

• PCR for the selected expiry/symbol. Example data does not invent live OI. An empty expiry is an honest empty, not zeros-as-data (FT-TRADE-012).

News Feed loads headlines only through the FlintTrade backend (GET /api/v1/news). There is no browser-side RSS or CORS-proxy fallback. If the backend cannot serve articles, the widget reports that news is unavailable from the FlintTrade backend. Publisher profiles are MoneyControl, ET Markets, and LiveMint.

The 17 workspace presetsCopy Anchor Link

A preset is a pre-built layout you can apply instantly from the command palette (Ctrl + K → "preset"). Built-in presets include:

• Scalper Zone — chart, order ladder, order pad, positions, scalper panel.
• Options Desk — option chain, chart, Greeks, positions, straddle P&L.
• Market Watch — multi-symbol watchlist, chart, price ticker, indices.
• Analysis — chart with indicators, OI analytics, positions, news.
• Risk Monitor — indices, risk, P&L monitor, positions, orders.
• Trading Desk — indices, positions, risk and orders; the composition that replaced the old Dashboard widget.
• Three Panel — CE, index and PE charts with synchronised time scales on the nearest-expiry ATM strikes.
• Investor View — chart, watchlist, holdings, indices (SIPs, net worth and mutual funds live on the Invest page).
• … plus nine more.

Presets are declarative FlexLayout documents. You can save your own custom preset from Settings → Workspace.

6. Screener walkthroughCopy Anchor Link

The screener lives under the Analysis widget category and shares the workspace with everything else — no separate route. Headline tools:

Option ChainCopy Anchor Link

Streaming option-chain widget rendered with Glide Data Grid for 60+ FPS updates even on a 50-strike chain. The header also shows a Max Pain badge derived from the same chain.

The Option Chain strip shows OI profile + PCR for the selected expiry and symbol (FT-TRADE-012). Example data does not invent live OI. The Mode honesty line is the disclosure — there is no second Example chip on the chain strip. An empty expiry is an honest empty — not zeros-as-data.

OI AnalyticsCopy Anchor Link

One widget (oichart) with several views of the same chain read: grouped OI bars, a CE/PE butterfly OI profile, a strike heat grid, build-up/unwinding signals, and a Max Pain view (the strike at which option writers lose the least if expiry hit right now). There is no standalone Max Pain widget.

OI Chart shares Option Chain expiries for the symbol/exchange. The expiry control appears when that list is non-empty; charts and statistics cover only the selected expiry (the chain’s selection when both widgets are open; otherwise the nearest listed). Example-data expiries stay listed. The Mode honesty line is the disclosure — expiries and the OI Chart are not badged Sample. Empty states are honest: No expiries for this symbol or No OI for this expiry, with no bars and no PCR/max-pain stats — never “No expiries” over fake or generic bars.

IV Smile & SkewCopy Anchor Link

Implied-volatility curve across strikes, with 25-delta skew and term-structure indicators. Useful for spotting unusual options activity.

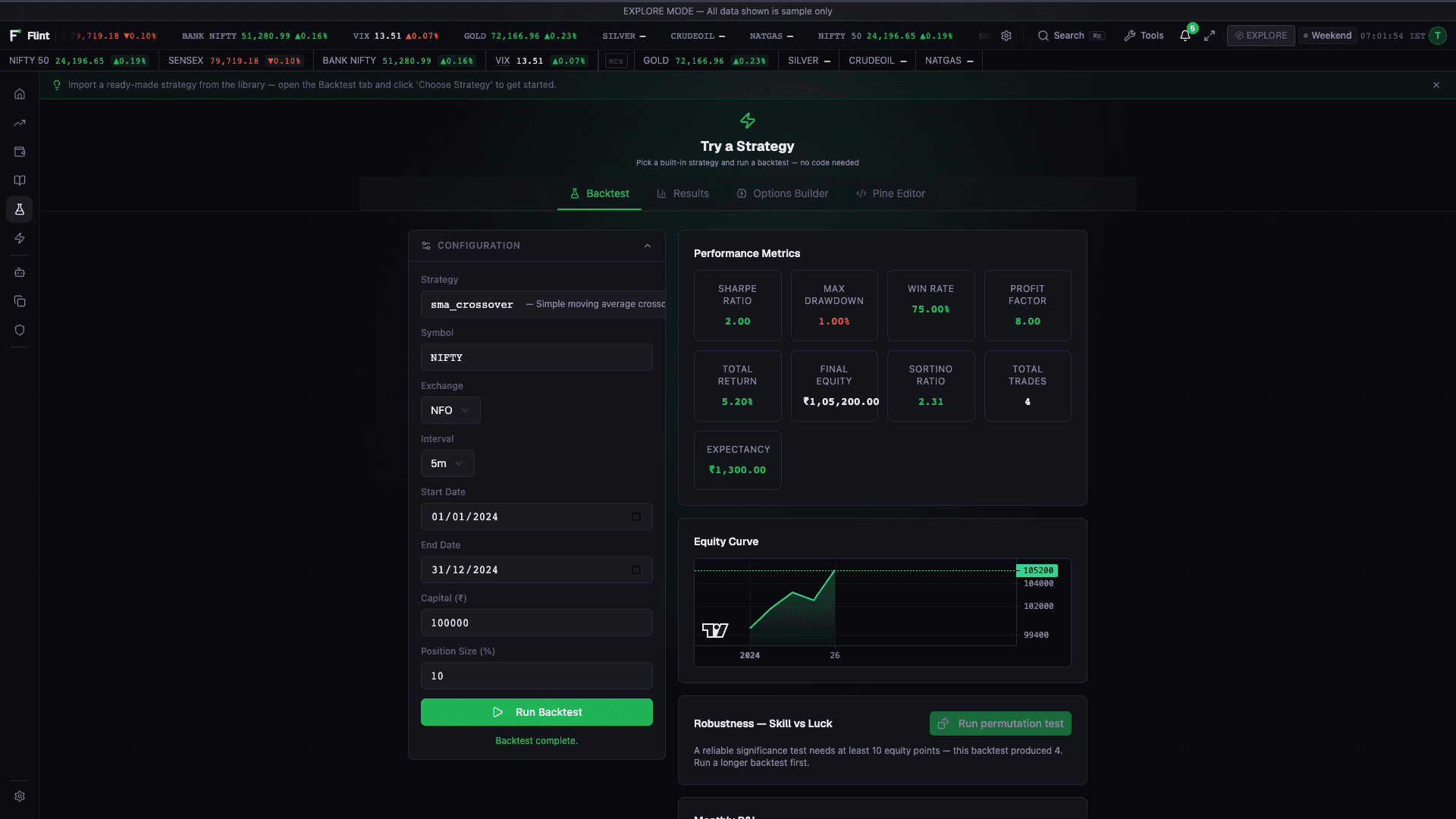

7. Strategy Lab walkthroughCopy Anchor Link

Open /lab. The Strategy Lab includes Backtest, Forward Test, Optimise, and Options Builder.

BacktestCopy Anchor Link

1. Pick a template. 94 ready-to-run template modules ship under packages/services/backtest/src/flinttrade_backtest/strategies/ — ranging from simple EMA crossover to complex options-spreads strategies (_indicators.py and _mixin.py are shared helpers, not templates).
2. Configure parameters. Each template exposes a parameter form (built with react-hook-form + zod).
3. Pick a date range. Historical OHLCV data is sourced from your configured providers (OpenChart, yfinance, or a licensed feed).
4. Run. The backtest engine is FlintTrade's native event-driven simulator (pure Python by default). Install the optional VectorBT extra for vectorised runs, or opt in to the Rust ticks engine for tick-level precision.
5. Review. Total Return (%), Net trade P&L (₹) (or Trade log P&L when net P&L is missing from the result), equity curve, Sharpe, Sortino, max drawdown, win rate, trade list, Monte Carlo confidence band.

After a backtest run on example data in /lab, Review shows labelled dual metrics. Total Return (%) is initial capital → final equity (including a forced last-bar close), with subtitle Initial capital → final equity — not a sum of trades. Net trade P&L (₹) is the Trade Log net-P&L sum when every trade has net P&L. If net P&L is missing, the card is labelled Trade log P&L with subtitle Gross — net P&L not in result — never a gross sum called net. The trade table column is Net P&L when the basis is net, otherwise P&L. When the summed trade-log amount matches the equity-curve rupee change, a quiet Reconciles with trade log note appears. When they diverge (fees, open marks, partial fills), both numbers stay visible with Trade log sum ≠ equity change — fees / open marks. The helper is omitted when the trade log or equity curve is empty — nothing to reconcile. Monthly P&L stays labelled Trade-based · sums Trade Log P&L so the chart matches the log on the same basis as the table.

Forward TestCopy Anchor Link

Same as Backtest, but runs in Practice mode against live ticks. Use it to validate the software path before any Live-mode use.

OptimiseCopy Anchor Link

Walk-forward optimisation across a parameter grid. Outputs a heatmap of performance per parameter combination plus an out-of-sample evaluation.

Options BuilderCopy Anchor Link

Payoff needs a premium before it shows numbers. Open /lab → Options Builder → Payoff. Until every leg has a premium, Max Profit, Max Loss, Net Premium, and BEP(s) show —. Helper: Enter premium to model payoff. A blank premium is unknown, not zero-risk.

With example data, the Long Call template seeds a sample premium from the sample-chain ATM CE LTP, labelled Sample premium — edit to model. Edit the field if you want a different cost. Other templates leave premium blank so Payoff stays on that helper instead of modelling ₹0.

Typing an explicit ₹0 is allowed. Payoff then treats cost as free and warns Premium is ₹0 — payoff treats cost as free.

Debit/credit and max loss share a position ₹ basis. Net Debit/Credit is the signed premium × lots × lot size. Max Loss and Max Profit are expiry-payoff results (intrinsic at the strikes, strike width, or unlimited) shown on that same position basis — not premium × lots × lot size on every card. For a long call, Max Loss equals Net Debit. A muted sublabel ₹X per lot · N lots · lot size L sits under those figures and is never the only number. Header and Legs chips use the same position basis as Payoff. When lots differ and a single per-lot breakdown cannot be formed, the primary figure is tagged position — never two unlabelled ₹ on mixed bases.

8. Automate walkthroughCopy Anchor Link

Open /automate. Automate place is admitted before the safety layers, the same as an operator place. A clamp comes back as a dispatcher error. It does not open a desk confirm, and it does not place the reduced quantity on its own. The hub has three sub-tools:

CronCopy Anchor Link

Time-based automations on the Schedules tab. Jobs use readable names; Show system jobs reveals maintenance jobs such as connection health checks, backups and data cleanup. This checkbox only filters the list and never pauses or resumes a job. Custom jobs remain visible by default. Examples:

• Run pre-market screener at 9:00 AM IST every weekday.
• Snapshot positions to a CSV at 3:30 PM IST.
• Write a daily P&L summary to local storage at end-of-day.

Cron jobs run inside the FlintTrade backend (packages/services/automation).

With example data, /automate → Schedules shows one Example marker for the view — seeded jobs do not carry a second chip once Pause is gated. Seeded example jobs show a muted sample status, not a production-looking Active badge. Pause on those jobs is disabled, with title helper Example schedule — control unavailable. Practice and Live keep Pause/Resume for real jobs (FT-AUTO-004).

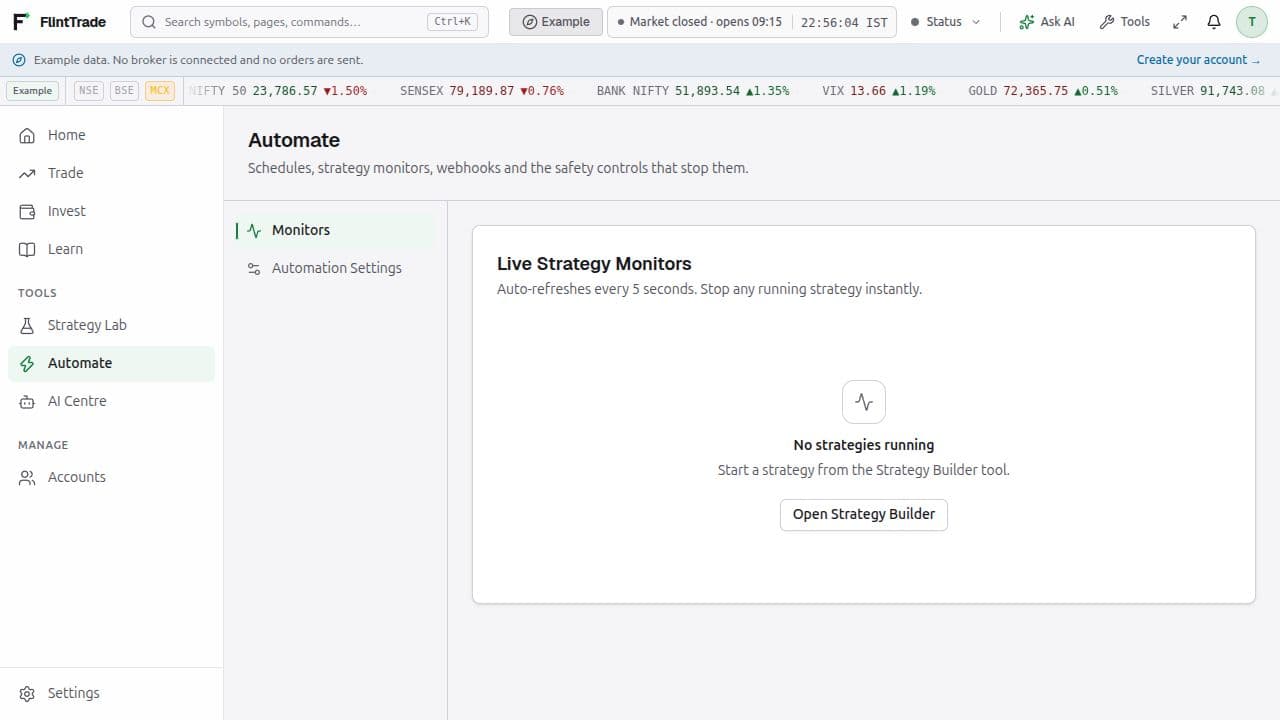

MonitorsCopy Anchor Link

Live Strategy Monitors lists running strategies and auto-refreshes about every 5 seconds. You can stop a running strategy from this view. When none are running, the empty state shows "No strategies running" and "Start a strategy from the Strategy Builder tool.", plus an Open Strategy Builder outline link that navigates to /lab.

With example data, Settings → Telegram, Test Send is disabled (click and Enter do not send). The prefilled message stays visible as a preview-only sample. Helper: Telegram tests are blocked for Example. Switch to Practice or Live with Telegram configured to send a real test. There is no confirm-and-send path from example data. Practice and Live arm Test Send only when Telegram is configured; otherwise the helper is "Configure Telegram first".

Execution LogsCopy Anchor Link

Execution Logs is the date-paginated history of automated actions. With example data, /automate → Execution Logs, a healthy sample session shows the muted empty state No execution logs for Example. Switch to Practice or Live to see real run history. It never shows Failed to load logs. Backend may be offline. while the app is live and example data is showing (FT-AUTO-003). In Practice or Live, a successful load with no rows for the selected date shows No execution logs for this date. — not an outage. The red Failed to load logs. Backend may be offline. line (or Retry) is reserved for a real request failure. While logs are loading, the view shows a spinner / Loading logs… and never flashes the outage copy.

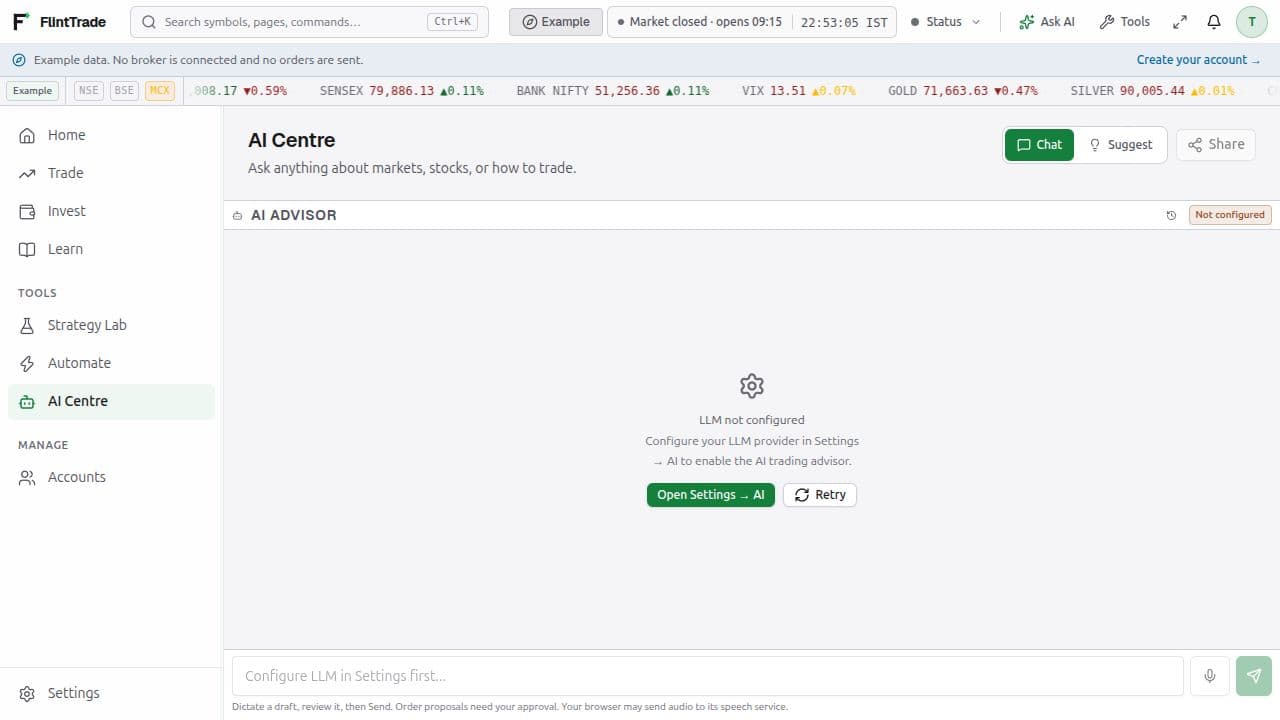

9. AI Centre walkthroughCopy Anchor Link

Open /ai. Chat, Signals, Sentiment, and RAG are backed by packages/services/ai. Suggest is a local filter UI over an illustrative strategy list — not a live AI fetch. Suggest stays labelled illustrative.

ChatCopy Anchor Link

Local AI analysis and debugging tools. The default local provider is FlintTrade's managed Ollama sidecar on a backend-only dynamic loopback endpoint. Settings -> AI requires separate confirmation before downloading the pinned runtime or any model; cloud and custom providers remain optional. Runtime update, rollback and uninstall are offered only while Ollama is stopped. Uninstall preserves models and accepted digests. The model inventory can delete one unselected model name or prune only unused digest-locked aliases created by FlintTrade; configured models are protected. If a timed-out mutation has an outcome FlintTrade cannot prove, Settings blocks later runtime changes and shows the exact operation and admission IDs. Explicit acknowledgement records that the unknown result was reviewed; it does not retry the action or label it successful.

Chat is suggest-only. A connected LLM is labelled Connected (suggest only). It does not place Live orders, and it is not Laya. Chat is not an admission source: it never shows Admit or Approved by Laya. The desk Laya chip is a separate status: Ready, Degraded, Down, Still loading, or Checking. The chip follows the current mode. In Practice it shows the sidecar and does not read Down while Practice orders are being admitted. During the first load the label is Still loading. Not qualified for Live is the tooltip. Laya starts Down and does not invent Ready. How to start it is Start Laya. A base checkpoint leaves Live unqualified. Only Live-facing Down closes Live orders and mirror start. Practice is not muted by that strip. A Practice place is refused when Practice itself is Down. Kill All stays reachable. Chat being offline does not close Live.

The sidebar has one AI Centre entry. Home’s Chat with AI and the Ctrl+K Ask AI tab open the same /ai conversation. TopBar Ask AI opens the contextual tutor using that same conversation history; its route and widget context are retained. The tutor does not float over app content when closed. The Settings tab is named AI, with the existing /settings#llm link.

Chat itself needs a configured LLM via Settings → AI. The badge and composer align with Settings → AI / #llm hydration as well as advisor status (including example data, signed in as Guest, and Practice), not a leftover local setting. When Settings #llm is empty ("No LLM provider configured") or the stored provider is blank, Chat on example data and Practice shows Not configured / LLM not configured unless advisor/status reports an explicit env-backed provider (LLM_PROVIDER). Connected (suggest only) must not appear from an env-default advisor configured (empty provider → ollama). Returning to Chat after you save Settings → AI re-checks readiness (advisor and Settings hydration), so the Not configured gate should not stay stuck on an outdated result.

When Settings → AI shows Managed Ollama Not installed, AI Centre /ai Chat does not show a green Connected (suggest only) badge (FT-AI-004). The badge follows the real LLM status: Not configured / Not installed, with the primary Open Settings → AI CTA to /settings#llm. Composer input and Send stay disabled until the runtime is installed and configured — the same bar as FT-AI-002. A provider string of ollama is not Connected while the managed runtime is absent.

When unconfigured or not installed, the warning badge is Not configured or Not installed, the empty state is LLM not configured (or Not installed), the primary CTA Open Settings → AI opens /settings#llm, and an outline Retry re-probes advisor status and Settings #llm hydration. Composer input and Send stay disabled; there is no send-then-no-reply path.

If leftover transcript messages hide that empty state while Chat is still unconfigured, not installed, disconnected, or in error, the header still offers Retry (re-check advisor status and Settings hydration) and Open Settings → AI.

A configured but broken probe shows Error or Disconnected with Retry — never a green Connected (suggest only). Example data does not show a fake Connected sample advisor. Any later demo replies must be labelled Sample replies. Signals Live / Polling stay separate from Chat LLM readiness.

AI Chat live-read context: when an LLM is configured, Chat may use Practice simulated fills and native live-read feeds for analysis. That is analysis context, not a guarantee of profitable alphas, and profitable alphas are not a release criterion. Chat does not place Live orders — Live place stays fail-closed. Chat never shows Admit or Approved by Laya. This does not lift the native broker HTTP freeze and does not claim every Chat turn already has live ticks. Chat never shows green Connected without a real LLM. When Chat is connected, the badge reads Connected (suggest only). Suggest stays labelled illustrative and is not this live-read path.

On example data, /settings#llm, an unconfigured session shows the empty state "No LLM provider configured" with Retry — not a broken load. That Settings empty-state wording stays distinct from Chat's LLM not configured; the two are aligned for readiness, so Chat also looks unconfigured when Settings looks empty. Configure a provider in Live or Practice on this machine; see Settings reference.

Speaking with the AI assistantCopy Anchor Link

The AI Advisor microphone fills an editable conversation draft. Review the transcript and press Send; recognition never submits an order. Your browser may send audio to its speech recognition service. Typed conversation remains available when speech recognition is unsupported or permission is refused.

An order request can produce a proposal for review. Approve uses the existing Practice order path and safety admission. Native Live execution remains unavailable until the native cutover; speech does not unlock it.

SuggestCopy Anchor Link

AI Strategy Suggestions filters a local illustrative recommendation list by Market Mood chips (Volatile, Trending, Sideways) and your risk profile from persona and experience. Mood is a filter, not a draft and not a live AI fetch. Cards stay labelled illustrative. Suggest is not the Chat live-read path and is not a profitable-alphas product.

Changing mood — a chip or Next mood — immediately replaces the recommendation cards and clears any previously focused strategy card, so chips, cards, and focus share one mood state. Selected mood chips use aria-pressed.

When mood and risk match nothing, the empty state offers Try another mood, which advances the mood filter. Deploy to Strategy Lab opens /lab?strategy=<registryKey> for that card.

SignalsCopy Anchor Link

Rule-based and ML-derived software outputs. Includes an executor that runs multiple generators in parallel and aggregates diagnostics. These outputs are educational and are not financial advice.

SentimentCopy Anchor Link

The Sentiment Analysis view scores submitted text for a symbol through the configured LLM or rule-based fallback. Separate summary and ticker endpoints synchronously analyse the static RSS publisher profiles (MoneyControl, ET Markets, LiveMint). Production composition starts neither a background news scheduler nor a social-media source.

RAGCopy Anchor Link

Retrieval-augmented question answering over local user-provided documents (for example notes, statements, or research PDFs). The runtime is off by default. The local sqlite3/NumPy vector store is built in; embedding libraries are loaded only when installed locally and RAG is enabled, so ordinary launches do not download models, embed documents, or carry optional AI dependencies. Set FLINTTRADE_RAG_ENABLED=true when you want the RAG runtime available, or FLINTTRADE_RAG_AUTO_INDEX=true when you intentionally want docs/ indexed at startup.

10. Accounts walkthroughCopy Anchor Link

Native accounts and copy tradingCopy Anchor Link

Accounts lists the built-in native broker connections. Credentials belong to the native gateway vault, and account selection uses the exact broker and account identity. Native broker HTTP reads and writes remain frozen pending the cutover.

Native copy trading has no active runtime. Mirroring, linked-account margin and risk execution are unavailable; their controls stay disabled in every mode. Account linking returns 501, and operations requiring the missing copy runtime return 503 after their authentication and mode checks. No external bridge service is started or contacted.

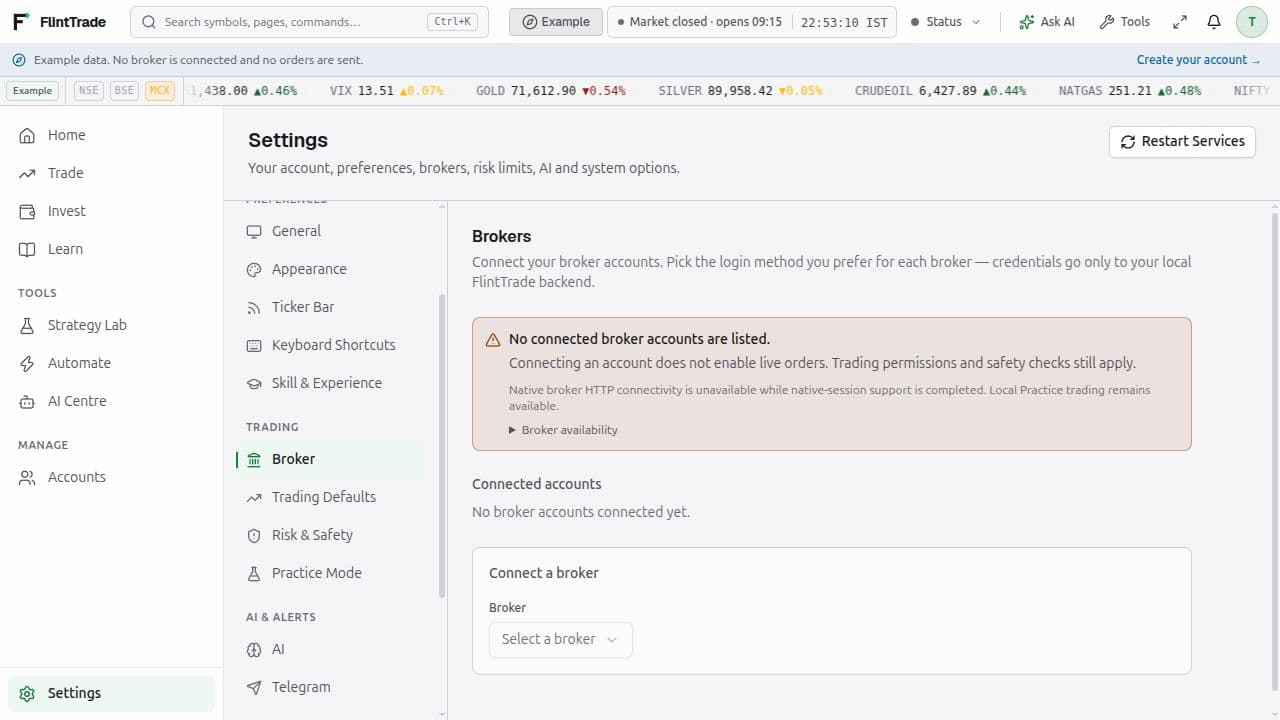

11. Settings referenceCopy Anchor Link

FlintTrade has two layers of configuration:

Layer 1: workspace.json (user preferences and integration settings)Copy Anchor Link

Lives in your platform-specific workspace directory:

The Setup and Settings UI write workspace.json. If optional setup was dismissed from the Practice desk, Settings opens with that same strip (Optional setup · N of 4 done, and · M skipped only when M is at least 1). The Settings reminder has Show and Hide. It has no Dismiss. Key Settings panels:

On /settings#security, Quick-unlock PIN is the 6-digit PIN that Quick Unlock and the Live switch both ask for. The PIN is optional at account setup. New and Confirm accept digits only (maxLength 6). Set PIN / Change PIN stays disabled until the account password is present, both fields are exactly six digits, and they match. Leaving (blur) a field with 1–5 digits shows PIN must be exactly 6 digits; leaving Confirm when both fields are filled and different shows PINs do not match. POST /v1/auth/pin/set rejects anything that is not ^[0-9]{6}$. Setting or changing the PIN does not change Mode.

Idle lock and Quick UnlockCopy Anchor Link

Welcome and the idle lock overlay both take their heading from the session JWT mode claim:

• Practice: Practice desk locked
• Live: Live desk locked
• Example data (the explore claim), a retired claim, or any other value: Locked

A Practice session whose broker status is Connected (read) keeps Practice desk locked. Connected (read) is a broker status, not a session Mode, so it does not choose the heading. A claim that is itself the words Connected (read) is not Practice or Live, and stays on the plain heading Locked.

On Welcome, Quick Unlock is the small label above the PIN field, not a heading. The PIN field's accessible name is Enter your 6-digit PIN. The primary button reads Unlock Practice desk, Unlock Live desk, or plain Unlock, for the same cases as the heading.

The idle lock overlay uses that same heading. Its PIN field's accessible name is Enter your 6-digit PIN. The PIN submits itself when six digits are entered. The overlay has no Unlock button.

Quick Unlock reopens the same Mode the session already had, with the correct PIN. It keeps that Mode. The request is POST /v1/auth/pin with body { "pin" }. A successful unlock replaces the session token. The previous token stops working. Live is entered only through POST /v1/auth/live, which requires the PIN and authenticator enrolment and also replaces the session token. Until the authenticator is enabled, that call refuses 403 totp_required. A session that is already Live keeps that enrolment check when Quick Unlock reopens it.

Resetting a finished account needs you to be signed in. Recovery asks for an authenticator code only once an authenticator is enrolled. That ends your other sessions. Signed out, with no authenticator enrolled, the desk says Sign in to reset this account. You'll need your password. With an authenticator enrolled it says Sign in to reset this account. You'll need your password and authenticator code.

With example data, /settings → AI, an unconfigured session shows the empty state "No LLM provider configured", with Retry and guidance Example uses example data and cannot load or persist LLM secrets. This is not a broken session; configure a provider in Live or Practice on this machine. Live and Practice still disable editing on a real load failure ("AI settings could not be loaded") to protect a saved configuration, and offer Retry. Selecting Managed Ollama while the runtime is absent shows Not installed — that is not a Connected advisor. AI Centre /ai Chat follows that install state (FT-AI-004) and does not paint green Connected (suggest only) until the runtime is installed and configured.

/settings#leverage always shows real leverage content or an honest empty. When the broker snapshot is available, the tiles show the current margin or leverage figures (read-only — change leverage on the broker platform). When leverage cannot be shown — unsupported broker, missing snapshot, or load failure — the pane shows Leverage settings unavailable. plus Retry. Selecting the Leverage tab never leaves a highlighted tab over a blank content pane.

MonitoringCopy Anchor Link

Settings → Monitoring (/settings#monitoring) reads this install. It does not write workspace.json. It stays its own Settings section. The TopBar Broker, Laya, and LLM labels are a different cluster (FT-SET-MONITOR-001).

System Health keeps service rows and machine rows apart. Signed-out checks use GET /healthz and GET /readyz, which return status only. GET /health needs a session.

Subsystem status lists Broker and DuckDB on their own lines. Broker shows its note, otherwise its status, otherwise unknown — for example Broker — Example. DuckDB reads DuckDB — Healthy when the check passes, and otherwise its note (example data can read DuckDB — Example) or Error. Example on a service row is that service's fallback. Monitoring fallback rows are Example. It does not stand in for disk, Memory, CPU, GPU, or network, and it is not merged into the TopBar Broker / Laya / LLM cluster.

This host is the machine where FlintTrade is installed. The rows are Disk, Memory (RAM on that machine), CPU, GPU, and Network. A measured row is labelled This host.

• Disk shows used and total gigabytes.
• Memory shows used and total RAM.
• CPU shows utilisation against 100%, and the core count when the host reports it.
• GPU is GPU, or GPU — the reported name. It shows used and total memory, or utilisation against 100%, when the host reports them.
• Network shows cumulative Sent and Received.

A missing host figure says Unavailable. So does a zero or absent disk or RAM total, a total that is not from this machine, and any sample that looks like real capacity — including an example-data disk or RAM total. The row stays Unavailable. It does not show 0/0 or invented gigabytes. When the backend returns a real host reading, including a degraded health response that still carries those totals, This host shows that reading in example data, Practice, and Live. When example data has no such reading, the host rows stay Unavailable while Broker and DuckDB may still say Example.

Process (this app) appears when FlintTrade's own memory is known. It shows RSS, and VMS when that figure is known. A missing RSS on that row reads RSS unknown. The label is Process (this app). Process RSS and VMS are never labelled as host Memory.

Traffic (this backend session) shows Requests / sec, Error Rate (as a percentage), and Top Endpoints for this backend session. An empty window reads No data yet.

Latency (this backend session) shows Order Latency by Broker with Avg, p50, p95, and p99 in milliseconds. An empty table reads No latency data recorded yet.

While a block is still loading it says so (Loading health…, and the same form for traffic and latency). If the backend cannot be reached, that block reads Backend unreachable — health unavailable (traffic and latency use the same form).

Settings → Report Bug prepares a GitHub issue without background telemetry. The form keeps runtime/error diagnostics out of the public draft by default; enable the diagnostic-summary switch only after reviewing the displayed metadata. Download diagnostics writes a local JSON bundle that excludes raw request bodies, messages, tracebacks, account/user identifiers, entry ids and URL queries. Opening GitHub sends the displayed draft in the URL. Oversized drafts are copied for manual pasting, and security reports open the private GitHub Security Advisory form instead of a public issue.

Layer 2: .env (advanced dev/server fallback)Copy Anchor Link

Native desktop users do not need .env. The repo-root .env.example exists only for Docker/systemd deployments, CI experiments, and contributor fallback testing when a setting cannot be supplied through the app UI.

Secrets are stored as _ref fields — secret:// references to hardened files under <workspace>/secrets/. They are never written to workspace.json in clear text.

12. TroubleshootingCopy Anchor Link

Two operator accountsCopy Anchor Link

FlintTrade keeps one operator account on this machine. When the database has more than one, startup pauses and leaves every row in place. Nothing is deleted automatically.

The screen heading is FlintTrade couldn't finish updating. The body reads: "This machine has two operator accounts, and FlintTrade supports one. Your data hasn't been changed. See Troubleshooting → Two operator accounts to choose which one to keep."

Open troubleshooting opens this section (USER_GUIDE.md#two-operator-accounts; on the public site, /docs/user-guide#two-operator-accounts). Retry checks status again. On Welcome, FlintTrade couldn't finish updating stays on screen until that check succeeds and reports that nothing is pending (migration_blocked null). A failed check, or a check that still returns two_operators, leaves the screen up. A saved sign-in is restored only after that successful check. A failed check does not open the desk. Sign-in does not create a session while the update is paused: POST /v1/auth/login returns HTTP 409 with message FlintTrade couldn't finish updating. and does not issue a token. GET /v1/auth/status returns migration_blocked set to two_operators (null when the desk may open).

When two accounts are present, the log line is Update paused: this database has 2 operator accounts; FlintTrade supports one. No data was changed. The number in that line is the operator count.

List the accounts. Each row shows the id, username, and created time:

flinttrade operators list

The columns are id, username, and created.

Keep one account:

flinttrade operators keep <id>

The command prints Keeping <id> <username>, then one Removing <id> <username> line for each other account, then asks Remove N other operator account(s)? [y/N]. Only y or yes continues. Any other answer, including Enter, prints No data was changed. and writes no backup.

--yes skips that prompt, including for scripts:

flinttrade operators keep <id> --yes

With no terminal and no --yes, the command prints No data was changed. A terminal is required, or pass --yes. and writes no backup.

On yes, it writes an owner-only backup beside the database, named auth.db.bak-YYYYMMDDTHHMMSSZ. If that name is already present, the stamp includes the fractional seconds (auth.db.bak-YYYYMMDDTHHMMSSFFFFFFZ). The file is in the workspace directory, next to auth.db:

On Windows, if %APPDATA% is unset, the directory is %USERPROFILE%\AppData\Roaming\flinttrade\.

It then removes the other operator accounts and the rows in auth.db that name them, renumbers the kept account to id 1, and rewrites rows that named that account (account_id, operator_id, or user_id) to id 1, in one transaction. A failure rolls that transaction back, so the accounts are unchanged. Keeping the stored id 1 again leaves that account's sessions, settings, and data in place. The single-operator update continues. The success lines name the id you passed. They do not print the stored id:

Kept operator <id>.

Backup: <workspace>/auth.db.bak-YYYYMMDDTHHMMSSZ

One operator account remains. Open FlintTrade and choose Retry.

This backup contains login secrets. Keep it private and delete it once FlintTrade works again.

<id> in Kept operator <id>. is the id you passed. The kept account is stored as id 1, so that stored id can differ from the id you passed. A later flinttrade operators list shows the kept account as id 1.

Passing 2 prints Keeping 2 <username>, then one Removing <id> <username> line for each other account, then Remove N other operator account(s)? [y/N]. After the transaction commits it prints Kept operator 2., then Backup: <workspace>/auth.db.bak-YYYYMMDDTHHMMSSZ, then One operator account remains. Open FlintTrade and choose Retry., then This backup contains login secrets. Keep it private and delete it once FlintTrade works again. The next flinttrade operators list shows that account as id 1, not 2.

If that transaction does not commit, the backup file is removed and the command prints The operator update could not be finished. No data was changed.

The command edits auth.db only. In that transaction it removes the other operator rows and rows in the same file that name those operators through account_id, operator_id, or user_id, then stores the kept operator as id 1 and points that operator's rows at id 1. Login-attempt rows are not stored against an operator, so they stay. It does not open workspace.json or any other database.

Open FlintTrade and choose Retry. On Welcome, FlintTrade couldn't finish updating stays up until the status check succeeds and reports that nothing is pending.

"Port 5100 already in use"Copy Anchor Link

# Linux / macOS
lsof -i :5100
kill <pid>

# Windows (PowerShell)
Get-NetTCPConnection -LocalPort 5100 | Select-Object OwningProcess
Stop-Process -Id <pid>

"No LLM provider configured" or "AI settings could not be loaded"Copy Anchor Link

With example data, /settings → AI, the empty state "No LLM provider configured" is expected for an unconfigured session. Example data cannot load or persist LLM secrets. Use Retry, or configure a provider in Live or Practice on this machine.

On Live or Practice, "AI settings could not be loaded" disables editing to protect a saved configuration. Use Retry.

On /ai Chat (AI Centre), an unconfigured LLM shows LLM not configured (badge Not configured) with Open Settings → AI and an outline Retry that re-probes advisor status and Settings #llm hydration. Composer input and Send stay disabled. Example-data and Practice Chat both look unconfigured when Settings #llm is empty or the stored provider is blank — Connected (suggest only) must not appear from an env-default advisor configured. If leftover transcript messages hide that empty state, the header still offers Retry and Open Settings → AI. The Settings empty-state wording stays distinct from Chat's LLM not configured; they are aligned for readiness.

When Settings → AI shows Managed Ollama Not installed (FT-AI-004), AI Centre does not show a green Connected (suggest only) badge. The badge is Not configured / Not installed, the Settings CTA stays visible, and the composer stays gated until the runtime is installed and configured. A provider string of ollama is not Connected while the managed runtime is absent. Chat never shows green Connected (suggest only) without a real LLM. When that LLM is configured, Chat may use Practice fills and native live-read feeds for analysis; Suggest stays labelled illustrative, and profitable alphas are not a release criterion. A configured but broken probe shows Error or Disconnected with Retry. Returning to Chat after saving Settings → AI re-checks readiness (advisor and Settings hydration), so the gate should not stay stuck on an outdated Not configured.

"Token expired" when placing an orderCopy Anchor Link

FlintTrade JWTs expire daily at 8 AM IST. Refresh the token by signing in again — the front-end will redirect you to /welcome automatically when it detects the 401.

Place refused as Laya denied, or quantity reducedCopy Anchor Link

Order Pad and Quick Trade show this under the place controls. Scalper, Positions, Order Ladder, and Option Chain may still show a place error as a toast.

1. Laya denied — read the server reason under the headline. The denial is one alert (role="alert"), the only live region. The reason line is named Laya decision and is not its own status. Place controls stay off until Laya or the mode changes. Max quantity N. is the ceiling the server sent. The strip reads Laya is Down. New orders are paused until it's Ready. You can still close positions. when Live-facing status is Down. It mutes Live place. Practice is not muted by that strip. A Practice place is refused when Practice itself is Down, with Laya is Down. New orders are paused until it's Ready. You can still close positions. A non-exit order is HTTP 403. Start the opt-in model before a Down engine can admit. A close that only reduces an open position can still be sent. A filled one can show Closed. Exits are allowed while Laya is Down. A close larger than the position is refused with that Down line. A second exit while one is already unfilled is Not placed. An exit for <symbol> is already pending. Wait for it to fill, or cancel it and try again. and the row shows Exit pending. When the broker's orders cannot be read, that refusal is Not placed. One exit at a time for <symbol> until your broker's orders load. If the position flips after the broker book loads, that row is tagged Unexpected and stays on screen with Position changed after your broker's orders loaded. You're now <long or short> <quantity> <symbol>. Close it if that wasn't intended. The Laya chip follows the current mode. Practice shows the sidecar. When Practice can admit, the chip shows Ready or Degraded, not Down. During the first load it says Still loading. In Live the chip shows Live-facing status. Not qualified for Live is the chip tooltip and the popover line when the sidecar is up and Live is not qualified. A Live place while Ready or Degraded, without a matching qualification record, says Laya isn't qualified for Live yet. Practice orders are available. A base checkpoint leaves Live unqualified. Laya starts Down and does not invent Ready. Start it from Start Laya. Chat cannot place instead.
2. Not placed. Laya allows up to N. Nothing was placed. A clamp is only when the requested quantity is greater than the allowed one. Laya does not auto-place. Place N sends that quantity through admit again. On Order Pad, Review Practice order then shows that placed quantity. Place 1 on Not placed. Laya allows up to 1. places. SafetySystem and gate_order run when that quantity is allowed. Cancel places nothing. The model does not raise quantity. A Down refusal does not show Max quantity and does not say to start the model. Laya Degraded — tighter limits means Live-facing Degraded: Live is open with a tighter ceiling. It is not a Blocked strip.
3. On the Order Pad, example data records a sample fill. The success line is Example order placed and the id starts with SAMPLE-. The server refusal Orders are not available for Example. Switch to Practice or Live to trade. is the HTTP path. A safety-layer rejection names the layer and is a separate message.

Orders not arriving / silently droppedCopy Anchor Link

1. Check the Mode chip in the TopBar. Example is sample data, signed in as Guest. The Mode line reads Example data. No broker is connected and no orders are sent. Order Pad Example Buy on /trade opens a review that reads Example only. Nothing is sent to a broker and no order is placed. Continue then records a sample fill (Example order placed, id starting SAMPLE-). Open the Mode menu and choose Practice for simulated fills, or unlock Live for a real broker order.
2. Open the Orders widget and look at the rejection reason column. A Laya denial or clamp stops before the safety layers. Order Pad and Quick Trade show it under the place control; see Place refused as Laya denied, or quantity reduced.
3. Check the FlintTrade backend logs — the console where you ran python scripts/ft.py start (or make start). A safety-layer refusal is logged with the layer that blocked it. A Laya refusal is not that layer.

Front-end shows stale pricesCopy Anchor Link

"Cannot find module '@/...'"Copy Anchor Link

The path alias @ → packages/apps/terminal/src/ is configured in tsconfig.json and vite.config.ts. If your editor's TypeScript server disagrees, restart it. If vitest complains, the Vitest config lives inside vite.config.ts and inherits that alias — there is no separate vitest.config.ts.

Settings page won't saveCopy Anchor Link

workspace.json may be read-only or in a folder the process cannot write to. Check the path printed in the FlintTrade backend startup log and ensure the running user has write access.

"Leverage settings unavailable." or a blank Leverage paneCopy Anchor Link

A highlighted Leverage tab on /settings#leverage must never sit over a blank pane. The pane shows real leverage content, or the honest empty Leverage settings unavailable. plus Retry. Leverage is a read-only broker snapshot — change it on the broker platform, not in FlintTrade.

Where to get helpCopy Anchor Link

• Settings → Report Bug — prepare a bounded issue draft and optional local diagnostic bundle from inside FlintTrade.
• Question issue template — for focused usage questions and setup help.
• GitHub Issues — for bugs and feature requests (use the templates in .github/ISSUE_TEMPLATE/).
• security.md — for security issues (private disclosure via GitHub Security Advisories).

If your issue requires a backend log, attach the relevant lines from the console where you ran python scripts/ft.py start, or from the persistent log at <workspace>/logs/flinttrade.log (redact any broker account IDs or tokens first).

13. UninstallCopy Anchor Link

Uninstalling is one command on every OS, and it is the same command for a web-app install and a desktop install. The plain uninstall removes only the installed application and its launcher integration; your workspace, managed source, toolchain and data are retained so a reinstall can recover them.

# macOS / Linux
curl -fsSL https://flinttrade.vercel.app/uninstall.sh | bash

# Windows 10/11
irm https://flinttrade.vercel.app/uninstall.ps1 | iex

Removing your data as wellCopy Anchor Link

Add the purge flag — --purge on macOS/Linux, -Purge on Windows — to also delete recognised FlintTrade data (workspace, managed source and tools). Purge is irreversible and asks for typed or explicit scripted confirmation.

# macOS / Linux
curl -fsSL https://flinttrade.vercel.app/uninstall.sh | bash -s -- --purge

# Windows 10/11
& ([scriptblock]::Create((irm https://flinttrade.vercel.app/uninstall.ps1))) -Purge

Ordinary backup archives bhavcopy CSVs only. It does not capture workspace settings or credentials — see Backup and restore.

If the site is unreachableCopy Anchor Link

Use this whenever an uninstall command above fails: the hosted URLs are only a redirect to the scripts in this repository, and a site outage answers 503 rather than the script. Fetch the same uninstaller straight from GitHub:

# macOS / Linux
curl -fsSL https://raw.githubusercontent.com/navaneeshnagarajan/FlintTrade/main/scripts/install/flinttrade-uninstall.sh | bash

# Windows 10/11
irm https://raw.githubusercontent.com/navaneeshnagarajan/FlintTrade/main/scripts/install/flinttrade-uninstall.ps1 | iex

Or, from a clone or from the managed source checkout (~/.flinttrade/web-src/FlintTrade for the web app, ~/.flinttrade/src/FlintTrade for the desktop shell), run them directly:

# macOS / Linux
bash scripts/install/flinttrade-uninstall.sh

# Windows 10/11
powershell -ExecutionPolicy Bypass -File scripts\install\flinttrade-uninstall.ps1

Both accept the same purge flag (--purge / -Purge).

Where settings liveCopy Anchor Link

Open Settings from the sidebar, your avatar, or Tools. Ctrl+, (Command+, on macOS) opens Quick Settings for common display preferences. Appearance has one colour-mode selector and one glass-effect toggle.

Broker shows native account status and availability restrictions. Connection alone does not enable live orders. Native connection and HTTP account reads remain frozen on this unreleased line. Leverage appears only with a connected broker outside Example mode. Existing /settings#api links open the native Broker page.

Risk & Safety owns daily-loss thresholds, global safety caps, the confirmed kill switch and account-scoped opening-capital/reset controls. Automate and the Trade desk link to it. Telegram setup and test messages live in Settings → Telegram.

Manage workspaces on the Trade desk includes built-in templates and Saved presets. Saved presets retains create, edit, fork, import, export and delete controls; existing /settings#presets links open desk management. AI save status appears only on the AI page.

Fork creates a named copy with the same description and widgets. Open Edit on the copy to change its contents.

In the public demo, custom presets are saved only in the current browser and are not synced to an installed account. Export a preset as JSON to keep a portable copy. Installed builds continue to save presets through their local FlintTrade backend.
